厂家直销 挤出机 塑料机械 塑料挤出机

     YF系列PVC异型材挤出生产线主要用于PVC门窗异型材、木塑型材、装饰型材等产品，该机组由上料机、锥形双螺杆挤出机、真空定径台、一体化牵引切割机、贴膜机、翻料架组合，可以根据不同型材面及模具，选用不同规格的锥形双螺杆挤出机以适应产量的需要。

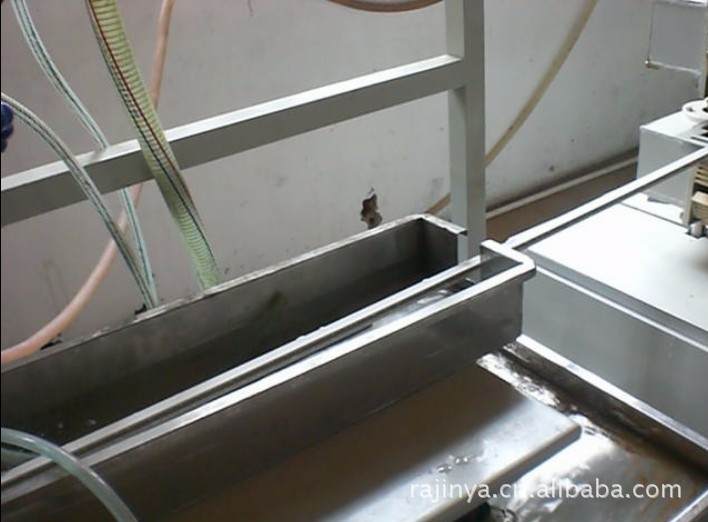

真空定径台采用特殊加大漩涡流冷却系统，便于冷却定型，特别的水平倾斜控制独特的三维调整控制，使得操作简便得以更好体现。根据不同模具，定径台可选用4米、6米、8米、10米等规格，以满足高速挤出的要求。
牵引机采用独特升降技术，上下履带背压控制，工作平稳，可靠性好、牵引力大，可自动定长切割，并配置粉尘回收装置。
该机组具有造型新颖、结构合理、使用方便等特点。

YF series special-material production line is mainly used in process PVC plastics door and window materials, special-shaped material,, shaped materials for decoration and others.
The unit is composed of cone double-screw-stem extruder, vacuum shaping table, hall-off machime, cutter, laminator, turning-up flame and others, According to the different profile\'s section and moulds, choose different specifications of cone double-screw extruders to fit.
The vacuum shaping table adopts special eddy current classen to enlarge cooling system , The vacuum decides diameter Taiwan to use enlarges the eddy current class cooling system specially, is advantageous for cooling to finalize, special horizontal tilt control unique three dimensional adjustment control,According to the different moulds and shaping table, choose 4m,6m,8m,10m and others, to meet requirement of high output.
The tractor uses the unique fluctuation technology, high and Iow caterpillar band back pressure control , The cutter\'s move speed keep with the tractor, It can automatic cut in limited site and it has powder recycle device.
The unit has advantage ,such as new style, sensible structure, and convenient operation.

生产线型号Model

JY-200

JY-240

JY-750

最大型材宽度Max product width(mm)

200

240

800

真空定型台长度Vacuum shaping length(mm)

2800

4000

5000

牵引速度Draw speed (m/min)

0.5-5

0.5-5

0.3-3

锯片直径Cuting sawdia (mm)

400

400

250

总功率Total power(kw)

11

20

33

外形尺寸Dimension(L×W×H)

9000*900*1700

10200*900*1700

11200*900*1700
