公司成立于2005年，现有员工58人，其中网络销售10人，年销售额3000万，业务客户遍布全国各地大中小城市以及国外用户，我公司引进国内外先进技术，并特请东北大学“杨贵修”教授为技术指导，现已具备集研发、制造、生产、销售于一体的综合企业实力。
The company was founded in 2005, the existing staff of 58 people, including 10 people online sales, annual sales of 30 million, business customers across the country and city and foreign users, our company introduced advanced technology at home and abroad, and Northeastern University "Yang Guixiu" Professor for technical guidance, now has R & D, manufacturing, production and sales the comprehensive strength of enterprises.
公司技术力量雄厚，管理规范，拥有企业管理专家、专业设计师和工程师所组成的领导班子，而且拥有大批量具备多年制作经验的员工队伍，为食品行业做出拥有贡献。2017年公司强势登陆CCTV-7，品牌展播，着力打造品牌企业，汇纳百川，海容天下，诸城汇海机械有限公司欢迎各位老板来公司实地考察，共同合作，共同发展，共创辉煌！
The company has strong technical strength, standardized management, which has business management expert, professional designers and engineers of the leadership, and has a mass with many years of production experience of the staff team, has made contribution to the food industry. In 2017 the company strong landing CCTV-7, brand screamingscreenings, efforts to build brands, exchange Nabaichuan, Hiron world, Zhucheng Huihai machinery limited company welcome you to visit our company boss, mutual cooperation and common development, create brilliant!
联系我们 诸城市汇海机械有限公司
Zhucheng Zhucheng Machinery Co., Ltd.
联系人 张金花
Contact Zhang Jinhua
联系电话 15866164189
Contact number 15866164189
微信 15866164189
WeChat 15866164189
QQ 2761058280
QQ 2761058280

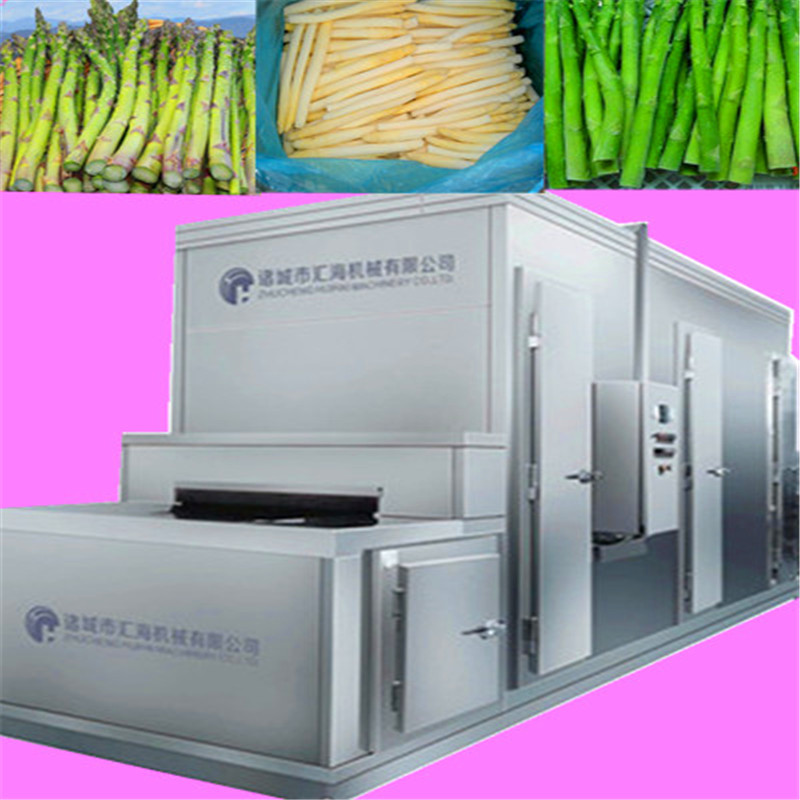

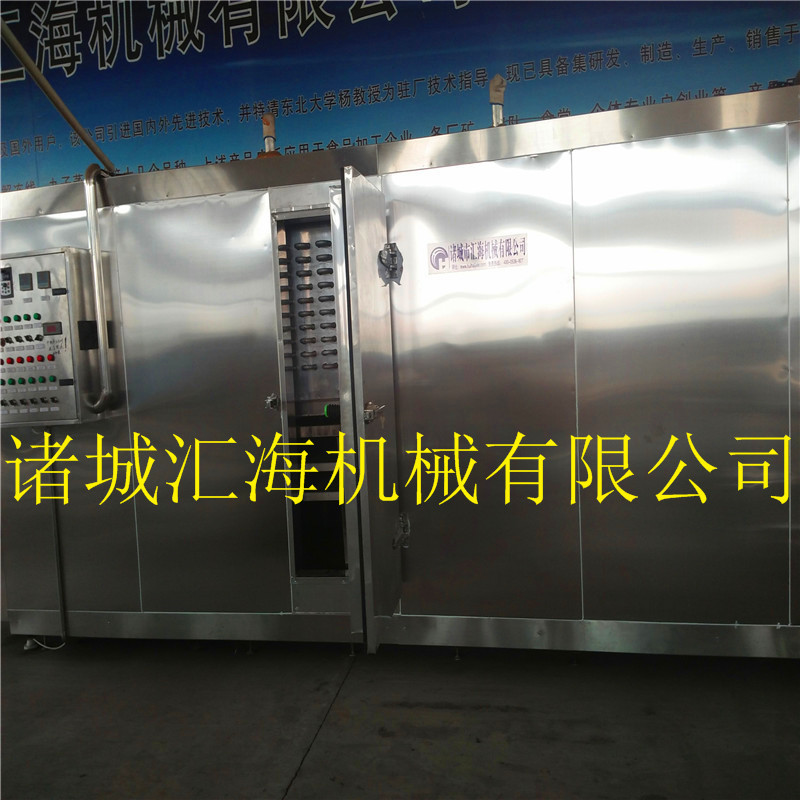

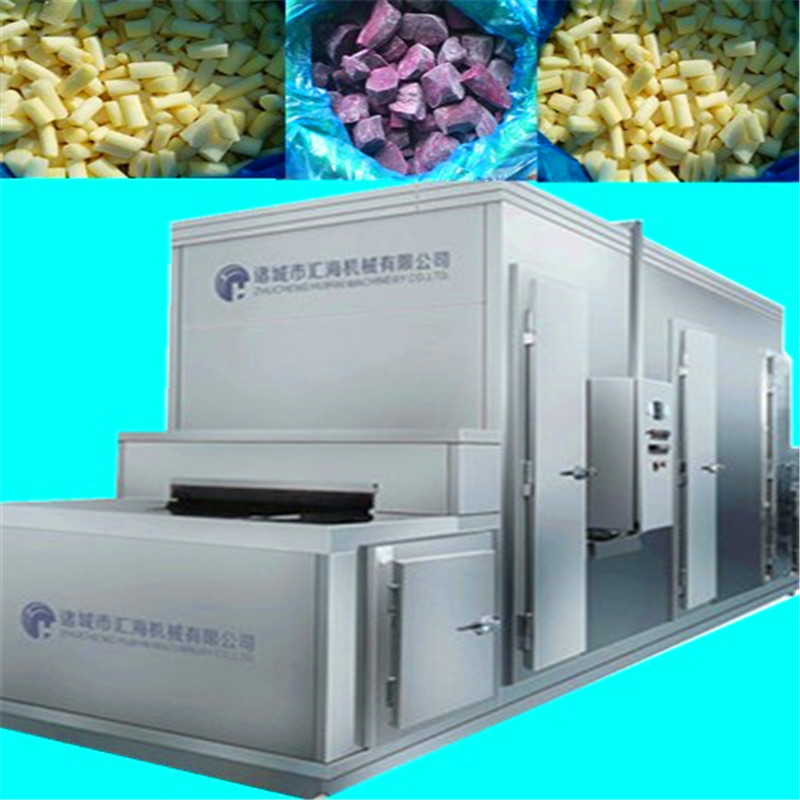

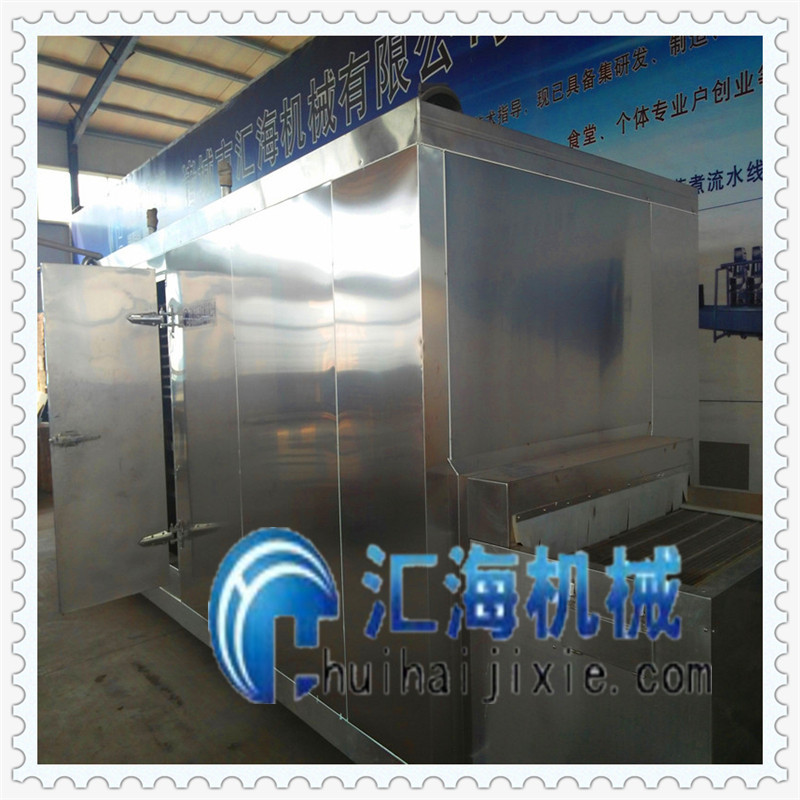

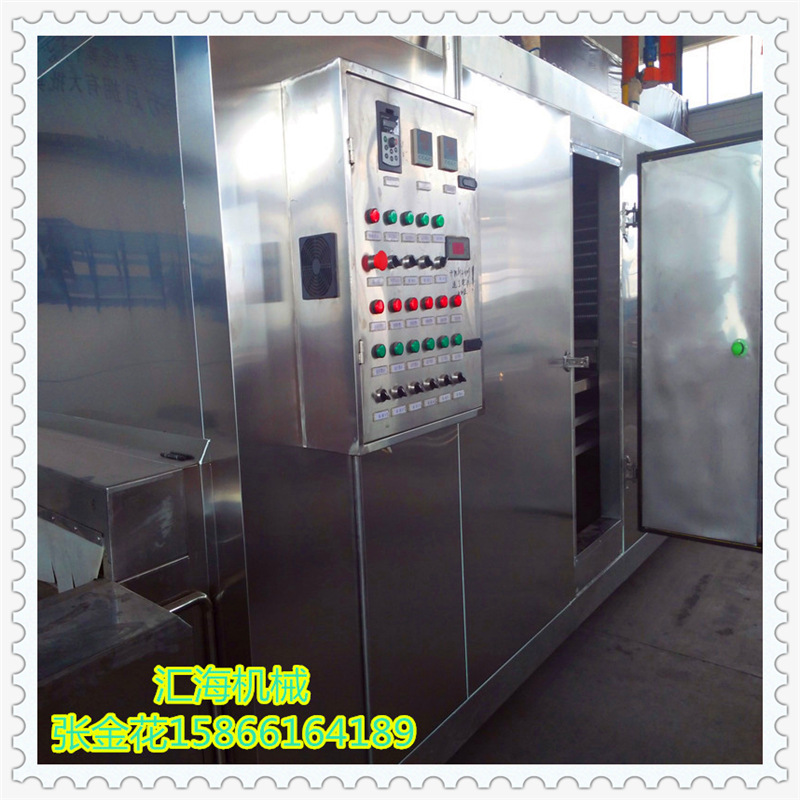

产品介绍：
该系列速冻装置形成垂直向上具有较大流速的强冷风汽流，并采用独特的导风装置，合理配风，气流分布均匀。使物料充分暴露在强冷风中。网带下部带有独立的脉冲震动装置，使网带的空隙不被 冰霜堵塞，减小了风阻，气流顺畅。并使物料不结块、不黏网而形成单体。实现了全流态化单体速冻工艺，速冻速度快，大大的提高了冻结产量。
1. the series of quick freezing devices form a strong air cooling steam flow with a larger flow velocity on the vertical, and adopt a unique air guide device. The reasonable air distribution and the uniform airflow distribution. Expose the material to the strong cold air. The lower part of the net belt is provided with an independent pulse vibration device, so that the gap of the mesh belt is not blocked by ice, and the wind resistance and the air flow are reduced. And make the material not agglomerate, do not stick net and form monomer. The whole fluidized monomer quick freezing process is realized, the freezing rate is fast, and the frozen output is greatly improved.
2.流化床是循环的、运行平稳的网带。产品在速冻过程中最大限度的不变形、不破碎。网带运行为无极变速，调速范围广，用户可以根据物料的不同，改变网带的运行速度，从而改变冻结时间。该系列速冻机，可冻多种蔬菜、水果类，也可以用孔盘速冻海产品类及面食类。另外速冻间内设有隧道，可容纳盘架车，用于冻结盘装冻品。
2. the fluidized bed is a loop with a smooth running belt. Products in the process of maximum freezing without deformation, not broken. The belt is operated with stepless speed change, and the speed range is wide. The user can change the running speed of the belt according to the different materials, thus changing the freezing time. This series of quick freezing machine can freeze all kinds of vegetables and fruits, and also can use frozen dish, seafood and pasta. In addition, the quick freezing room is equipped with a tunnel, which can accommodate a tray truck for freezing frozen dishes.
型号 WDSX-500 WDSX-1000 WDSX-1500 WDSX-2000 WDSX-3000
Model WDSX-500, WDSX-1000, WDSX-1500, WDSX-2000, WDSX-3000
冻结能力
Freezing capacity
（kg/h青刀豆） 500 1000 1500 2000 3000
(kg/h green beans) 500100015002000300
冻结时间（分种） 9-60 9-60 9-60 9-60 9-60
Freezing time (minutes) 9-60 9-60 9-60 9-60 9-60
进料温度（℃） 15 15 15 15 15
Feed temperature (DEG) 1515151515
出料温度（℃） -18 -18 -18 -18 -18
Discharge temperature (DEG) -18, -18, -18, -18, -18
冻结温度（℃） -30~-40 -30~-40 -30~-40 -30~-40 -30~-40
Freezing temperature (DEG) -30~-40, -30~-40, -30~-40, -30~-40, -30~-40
制冷剂 R717.R22 R717.R22 R717.R22 R717.R22 R717.R22
Refrigerant R717.R22, R717.R22, R717.R22, R717.R22, R717.R22
耗冷量（KW） 95 188 256 345 530
Cold consumption (KW) 95188256345530
装机功率(KW) 19.2 39 52.5 67 86
Installed power (KW) 19.239, 52.56786
冲霜水量(T/H) 10 18 23 30 35
Frost discharge (T/H) 1018233035
外形尺寸(M) 8.0?3.5?3.0 11.0?4.0?3.0 15.0?4.2?3.0 18.5?4.4?3.0 22.9?4.4?3.0
Outline dimensions (M) 8 x 3.5 * 3, 11 * 4 * 3, 15 * 4.2 * 3, 18.5 * 4.4 * 3, 22.9 * 4.4 * 3
库体长度(M) 6.0 9.0 13.5 16.5 20.5
Library body length (M) 6, 9, 13.5, 16.5, 20.5
网带长度(MM) 1000 1200 1500 1500 1600
Mesh belt length (MM) 1000120015001500, 1600
交
交易流程：
1.电话建立交流，提交参数要求及确定选型（设备的配置可根据用户的实际要求进行定制，确保经济实用）。
2.确定价格。因考虑到用户选择的配置不同及全国各地物流价格差异，价格可议。
3.签订工业购销合同，保障双方的合法权益（合同一式两份，必须经双方加盖合同专用章）。
4.付款及发货。买家需要支付货款的30%作为定金，剩余货款提货前付清。买家需提供详实的收货地址，以保证我们能够及时准确的将您所需的设备送达贵公司。
5.到货验收。到货后用户应及时清点收货清单和查看设备外观是否有缺陷（我公司发货时设备外观及性能都经过严格检查，主要考虑物流运输因素）。确认无误后，付清余款方可提货。 6.完成交易。 本公司设备可按您要求加工定制，根据材质不同、价格有所不同
The transaction process:
1. telephone exchanges, submit the parameter requirements and determined the selection (equipment according to the actual requirements of users to customize, ensure economic utility). Price
2. The price can be discussed because of the different configuration of the user's choice and the difference in the price of the logistics in different parts of the country.
3. industrial signed purchase and sale contracts, safeguard the legitimate rights and interests of both (two copies of the contract, the contract must be approved by the parties with dedicated seal).
4. payment and delivery. Buyers need to pay 30% of the purchase price as a deposit, the remaining payment before delivery. The buyer has to provide a detailed delivery address to ensure that you have the timely and accurate delivery of your equipment to your company.
5. inspection. After arrival, users should check the receiving list in time and see if the equipment is defective. (the appearance and performance of the equipment are strictly inspected when we send the goods, mainly considering the factors of logistics and transportation). After confirmation, the balance can be taken.
6. to complete the transaction. Equipment of the company can be customized according to your request processing, according to different materials, different prices
（1）价格问题：价格以本公司实际报价为准！
（2）设备问题：所有商品我们公司在发货之前都进行严格质检，确保无任何问题才发货！
（3）设备图片：图片均100%实物拍摄，但由于光线及显示器等原因会有轻微的色差，请谅解
（4）设备属性：下单之前或者购买之前请咨询您需要的商品型号、规格尺寸、公司合同等，以便确认你满意的设备、方便您购买产品应有的保障。
联系我们 诸城市汇海机械有限公司
(1) price: the price to the company's actual quote!
(2) equipment problem: all goods, our company carries on strict quality inspection before shipment, make sure that no problem is shipped!
(3) equipment picture: 100% pictures are taken in kind, but due to the lighting and display and other reasons there will be slight color, please understand (4): single device attributes before or before buying please consult the merchandise you need type, size, male our contract, in order to confirm your satisfaction with the equipment, security products should be convenient for you to buy. Contact we Zhucheng City Huihai Machinery Co. Ltd.
可根据客户需要加工定制
