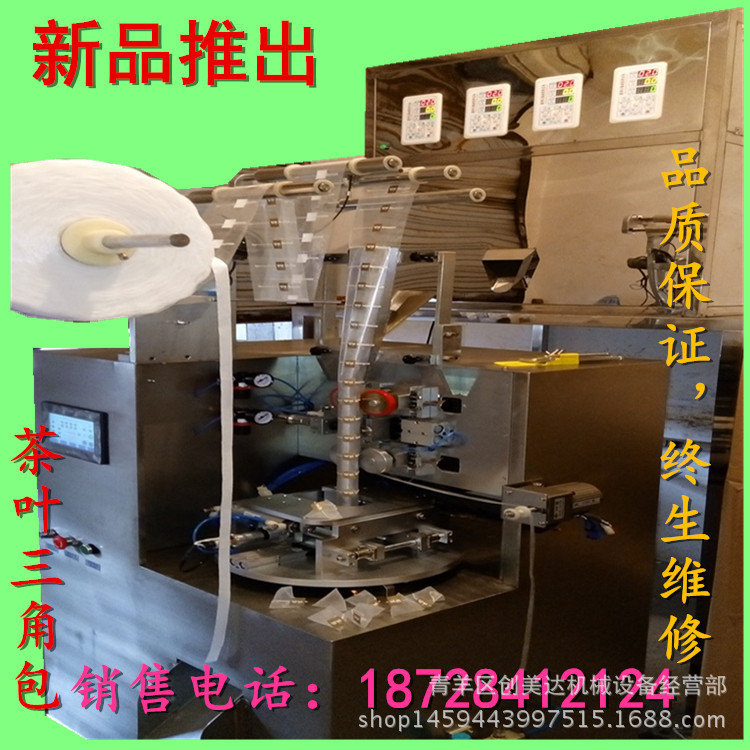

三角袋茶叶包装机
Triangle tea bag packaging machine
一、该三角包茶叶包装机适用于：黑茶，白茶，代用茶，花草茶，配方茶，养生茶，八宝茶，养肝茶，绿茶、红茶、花茶、咖啡、中国茶、健康茶、中药茶、颗粒等立体三角茶包包装。
This machine is used to pack : Green tea,black tea,scented tea,coffee,Chinese tea,health tea,herbal tea,or particles.
二、性能特征Performance characteristic：
1、 通过超声封口切断方式，使抽出性突出且外观形状漂亮的茶包的生产成为可能。
Through use the method of Seal&cut the bag by ultrasound,make it possible to production TEABAG which is ease to take out and has pretty shape.
2、 包装能力达2400~3600袋/小时。
The Packaging capacity is 2400-3600 bags/hour.
3、 用带标签的包装材料可以简单生产出带标签的茶包。
With the labels attached packing materials can be simply produced TEABAG with the label.
4、 根据茶叶的形状可选电子秤计量或滑动量杯计量。
The choice of volume measurement, and electronic scales measuring for different packing content.
5、三角立体袋与四角扁平袋生产只需一键转换
Can switch from making pyramid bags to flat bags at the push of a button
6、整机PLC控制
The whole machine controlled by smart PLC.
三、技术参数Specifications:
机型 Type | CM-186 |
填充精度 Filling precision | ≤±2% |
填充容量 Filling range | 2-10ml |
制袋尺寸 Bag Size | 60-80W*40-80L mm |
生产速度 Product speed | 45-60bag/min |
包装膜宽 Film width | 120mm,140mm,160mm |
包装膜厚 Film Thickness | 0.04-0.06mm |
包装膜材质 Film material | 尼龙，无纺布，PET,等超声波可封材质
Nylon, Polyester net non-woven fabrics,
or other ultrasonic sealing materials,ETC. |
放卷外径 Roll outside diameter | ≤φ400mm |
放卷纸芯内径
Roll core ID | φ76mm |
气源压力 Air Comsumption | ≥0.6Mpa |
电压
Electricity power | 单相，220V,50HZ
Single phase, 220V,50HZ |
功率
Total Power | 1.2Kw |
设备尺寸
equipment size | L1200×W1100×H2200(mm) |
设备重量
Equipment weight | 500Kg |
四、保修期限：设备一年免费保修，终生服务。
