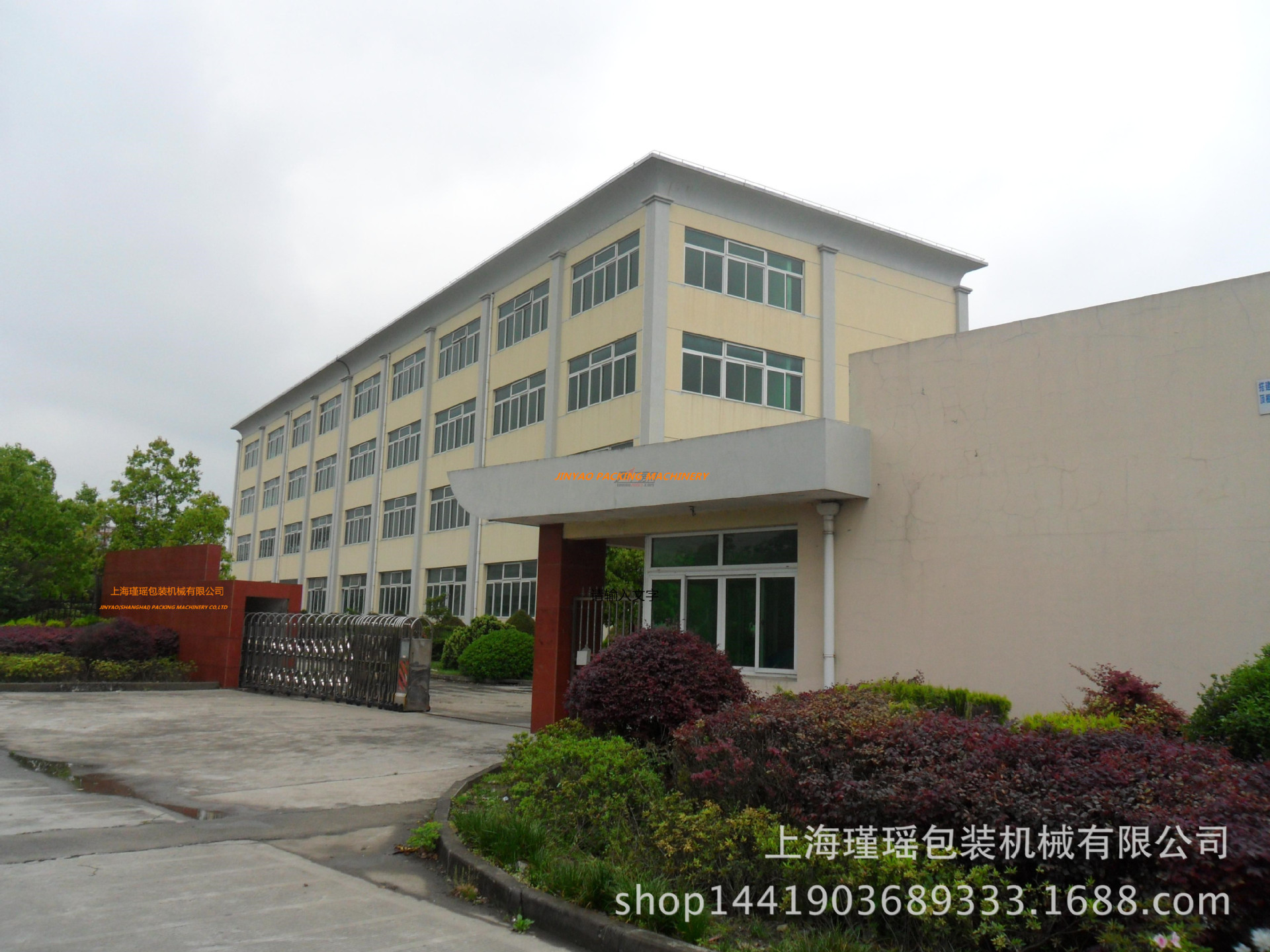

瑾瑶（上海）包装瑾机械有限公司是国内专业的，集大型直线式灌装生产线，机器人装箱，码垛整线规划，交钥匙工程的生产厂家。企业有着丰富的灌装生产线设计经验，和诸多大型厂家有合作的成功案例.

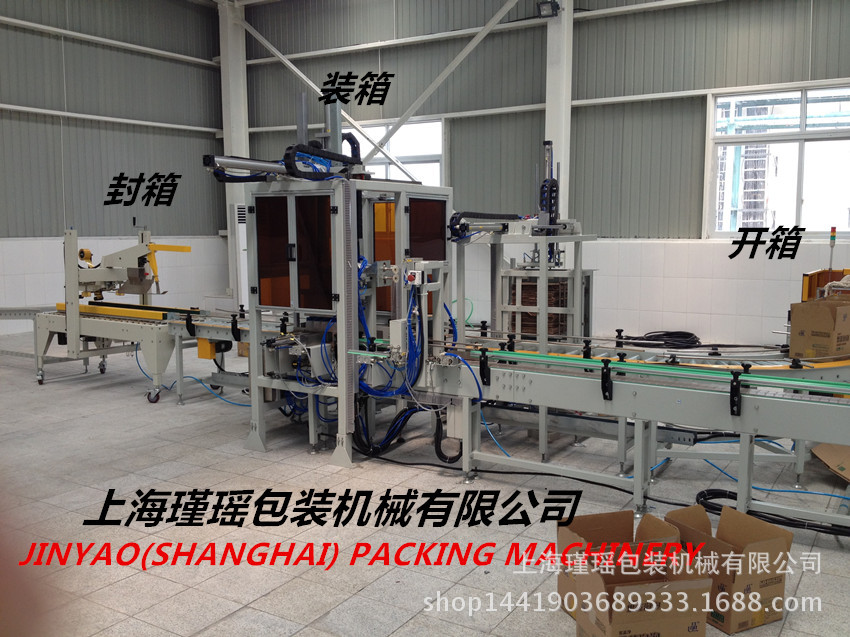

JinYao (Shanghai) Packaging Machinery Co., Ltd. is a professional turnkey manufacturer offering the full set linear filling production line, robot packing and packaging stack .
We have successful cooperation with many larger buyer in domestic and abroad with rich manufacturing experience in the filling technology.
我司JYF系列活塞式灌装机适于灌制不同黏度的水剂和膏霜类产品，广泛地适用于日化、食品、医药、油脂等各个行业。
该系列机种设计紧凑合理，外形简洁美观。采用德国FESTO气动元件和日本三菱电控部件。所有与物料接触部件均采用进口食品级不锈钢，经数控机床加工完成。品质卓越的元器件，确保了其出色的质量与持久稳定的性能。
JYF系列机种采用卡箍式连接，实现快速拆装、清洗，维护便利，无需任何特殊工具。真正做到调节便利、无瓶不灌、装量准确。同时具有计数功能。整机可配置六至十二个灌装头，灌装头个数也可根据客户需要增减。
JYF series piston filling machine are suitable for filling different semi-viscous and viscous liquid and cream products such as daily chemical, food, pharmaceutical, grease and other industries.

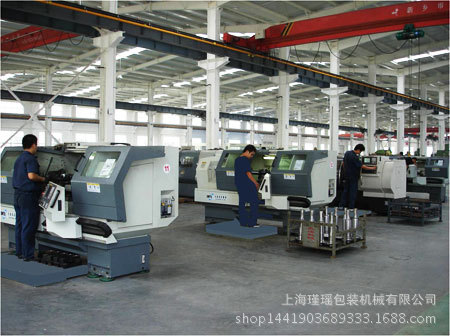

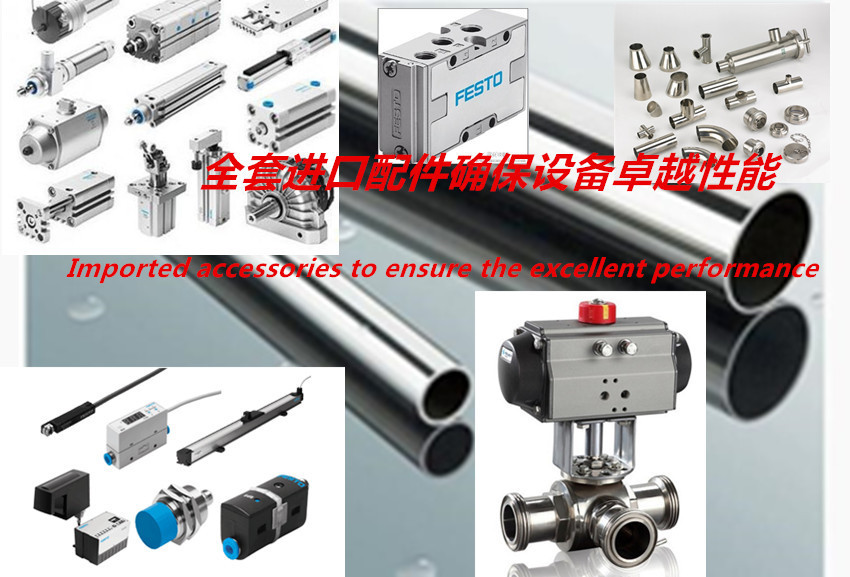

These machines are featured with compact design, simple and beautiful appearance. Equipped with Germany FESTO pneumatic elements and Japan Mitsubishi electronic control components. All material contact parts are made of imported food grade stainless steel with the CNC machining finish. High quality components ensuring its excellent quality and lasting stability performance.
JYF series models with coupling-type connection for fast disassembly, cleaning, maintenance without any special tools. It can stop fill when there is no bottle or bottle fall ensuring the machine clean and no waste. Very exact amount and counting functions to ensure the filling accuracy. The machine can be configured 6 to 12 filling nozzles by customer special requirements.
机器特点Features ：
·有效防止滴漏与拉丝的防滴漏灌���头
·横向瓶口定位系统进一步确保瓶口定位
·“故障自动查询和显示”、“物料超液位报警”等功能
• Effective prevention leakage and fiber drawing filling nozzles
• Equipped the horizontal bottle positioning device make sure the product all be filled into bottles .
•Failure automatic query and display & liquid level detection and alarm functions
主要技术参数: 标准灌装头数：2-12头（可定制选配头数，依据客户实际产能） 标准灌装范围：25-250ml, 100-1000ml, 500-2500ml, 1000-5000ml 灌装速度：0-100瓶/分钟,
主要技术参数Main Parameters :
标准灌装头数filling nozzle：2-12头pcs(customized )
标准灌装范围filling capacity ：25-250ml, 100-1000ml, 250-2500ml, 500-5000ml
灌装速度fill speed ：0-100瓶/分钟bottle /min

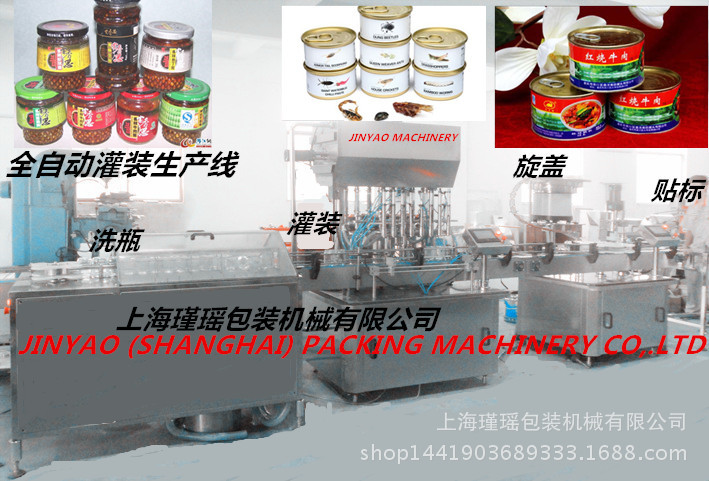

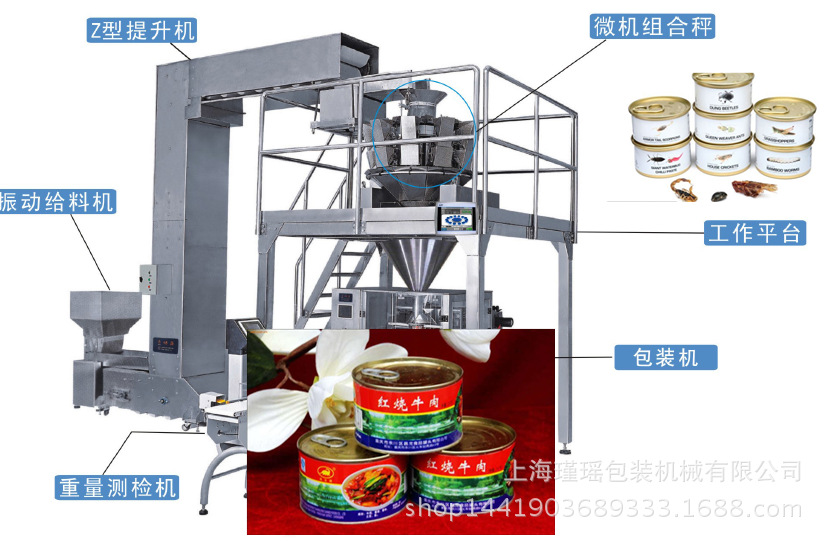

1.JYF酱料酱类全自动灌装生产线; 组合称罐头生产线集灌装，汤料灌装 ，封罐，喷码整线自动化作业。
本酱料灌装生产线主要用于灌装含颗粒的半流体、膏体、酱料物料的灌装，像辣椒酱、火锅料、牛肉酱之类的酱料应用此机可大大节约人员成本，提高生产效率，是酱类酱料生产厂家，设备更新换代的最佳选择！自主研发的灌装生产线，集机电、气动于一体，由PLC控制，结构紧凑，设计合理，与物料接触均为不锈钢制作，完全符合GMP标准；设备灌装精度高、运行稳定，维护方便等特点。 ;
JYF Paste( Sauce) Filling Production Line
This sauce filling production line is mainly used for filling semi-fluid-containing particles, paste, sauce materials such as chili sauce, hot pot, beef sauce and so on to greatly reduce personnel costs improving production efficiency.
With self-developed technology ,the filling line is combined with the electric and pneumatic device controlled by PLC ,it has compact structure and reasonable design. All materials contact parts are made of stainless steel meet with GMP standards; the line is featured with high precision filling, stable operation and easy maintenances
2.JYFP粉末灌装旋盖生产线 ;
集粉剂充填旋盖、电磁感应封口、双面贴标、喷码等功能为一体，自动完成粉剂的充填包装过程，具有精度高、速度快、贴标精确、喷码清晰准确等优点，适用于大多数粉末产品和特别产品的灌装、旋盖、贴标等包装。
JYFP Powder Filling & Capping Production Line
The line has the automatic combination function of powder filling and capping, electromagnetic induction sealing, double-sided labeling, marking with high precision, fast speed, labeling precise, clear and accurate marking features.

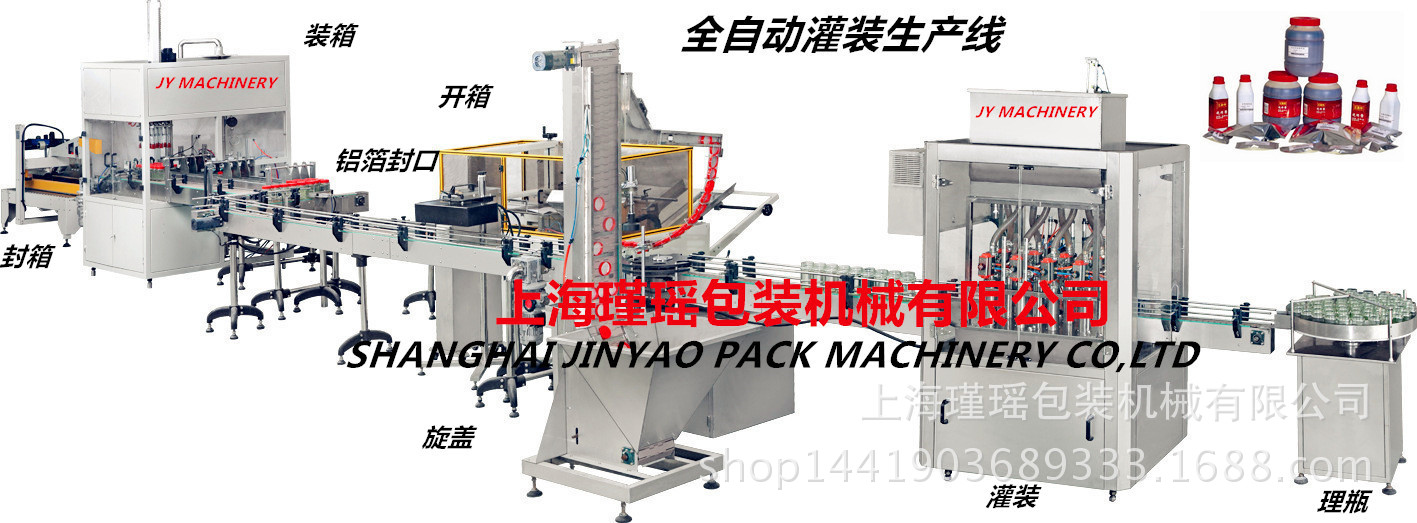

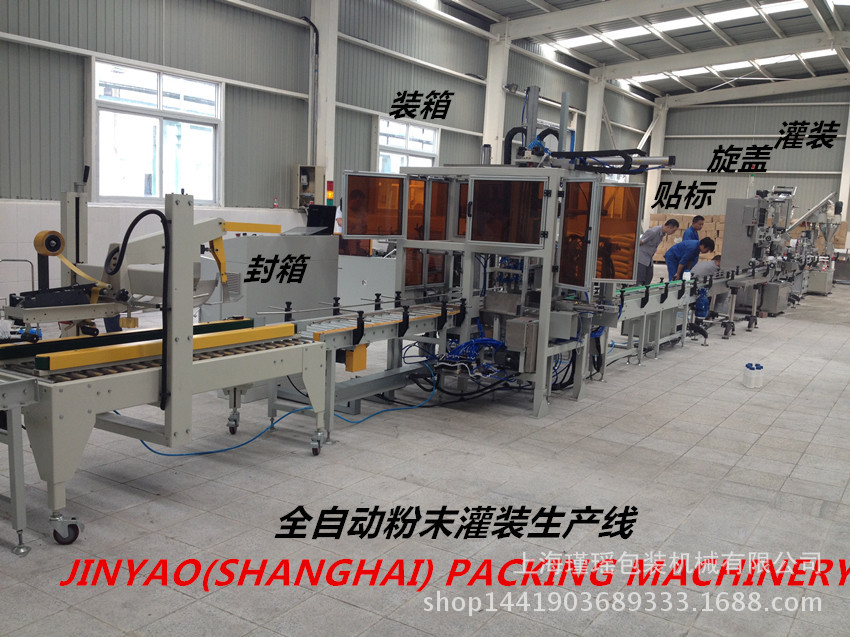

3.JYF全自动粉末灌装生产线
该机由伺服螺杆充填包装、自动旋盖机、自动贴标机，电磁感应铝箔封口机、立式圆瓶贴标机、小字符喷码机组成。
性能稳定，调节方便，通过更换螺旋附件能适应奶粉、味精、固体饮料、白糖、葡萄糖、咖啡、固体医药、农药、粉粒状添加剂、染料、兽药等各种包装规格的粉剂/颗粒物料的包装.
JYF Automatic Powder Filling Line
The line is composed of the servo screw filling machine, automatic capping machine, electromagnetic induction aluminum foil sealing machine, vertical round bottle labeling machine and small character inkjet printer.
It has stable performance and easy adjustment features, can be applied in milk powder, monosodium glutamate, solid drink, white sugar, dextrose, coffee, solid pharmaceuticals, pesticides, granular powder, additives, dyes, veterinary drugs and other kinds of packaging specifications of the powder / granule packaging materials by replacing the screw and accessories.
4.JYF全自动膏体灌装生产线
在参考国内外同类产品先进高端机型的基础上进行改良设计，并增加了部分附加功能。使产品在使用操作、精度误差、装机调整、设备清洗、维护保养等方面更加简单方便。
广泛适用于日化、油脂等各行业，可灌装不同液体类产品。该机设计紧凑合理、外形简洁美观，灌装量调节方便。
该机有六个灌装头，由六个气缸驱动、灌装物料更加快速精确。
JYF Automatic Paste Filling Machine
We improve the design and add some additional functions in reference to similar foreign machine. The machine has features such as easy operation, accuracy filling , simple installed & adjustments, convenient cleaning and easy maintenance.
Widely used in daily chemical, grease and other different liquid products with compact design and simple appearance.
The machine has 6 filling nozzles driven by 6 cylinders ensuring fast and accurate filling.
5.JYF全自动液体灌装生产线
8头同时灌装，根据需要可增加灌装头数量。快速清洗、快速调整、容积缸体动作无级调速，适合不同规格、不同液体的灌装。充填量一次调整完毕，每个容积缸可分别微量调节，灌装精度高且一致性好。 接触液体部件的材料为316L不锈钢、硅橡胶，符合GMP规范。 进口减速电机无级调速控制灌装柱塞缸，不仅适合各种水剂，亦适合稠粘液体.
JYF Automatic liquid filling machine
8 nozzles filling at one time and can be increased the number of filling nozzles by request . Fast cleaning, rapid adjustment, stepless volume cylinder to meet different specifications and different liquid filling. Filling amount of each volume cylinder can be adjusted respectively after former filling finished, it fills in great accuracy and consistency.
The material of contact with the liquid part is 316L stainless steel and silicone rubber to meet the GMP standard. Imported reducer Filling piston cylinder controlled variable speed
6. JYF活塞式直线灌装机
该机由六个气缸驱动、六个灌装头同时灌装、灌装物料更加快速精确。采用德国FESTO气动元件、德国SICK光电感应，台湾AirTac的气动组件和法国施耐德的电控部件，性能稳定。西门子或三菱PLC、PROCE触摸屏、三菱或西门子变频器及法国施耐德电器元件。能够实现无瓶不灌装机、灌装量准确并具有计数功能。
JYF Linear Piston Filling Machine
The machine is driven by 6 cylinders for filling at one time quickly and accurately. Using the German FESTO pneumatic element, German SICK sensor, Taiwan AirTac pneumatic components and French Schneider electrical control parts to guarantee the excellent performance and running stability. With Siemens or Mitsubishi PLC, PROCE touch screen, Siemens or Mitsubishi inverter and the French electrical components to achieve the exact filling when there is bottles and stops without bottles, it has accurate filling amount and counting function.
7.JYF膏霜灌装机
膏霜灌装机星盘间歇转动采用分割器传动,定位精确，气缸带动活塞，两个灌装头同时进行灌装；灌装时容器底托的转速/低速二段，可以稳定的对物料进行脱泡灌装。
灌装部件结构是可以组装和分解符合卫生标准，具有无容器不灌装功能，整机采用PLC控制方便简单，适合物料为中黏度到高黏度的膏霜类物料.
JYF Cream Filling Machine
Cream Filling Machine is drive by segmentation through astrolabe intermittent rotation, positioning accuracy, cylinder piston drive, 2 filling nozzles for filling at one time ,the material can be degassed filling by the rotary speed and low speed on the container.
The structure of filling parts can be assembled easily and meet the health standards, with no container no filling function, it is convenient and simple operation by PLC control to fill the medium viscosity to high viscosity materials Cream
8.JYF新品，旋转式（回转式）灌装机;
本机适用于果汁、调味品、化妆品、洗涤用品、农药、医药产品、石油产品等液体的灌装。
电机和输瓶输送带都采用变频调速，操作方便。
采用超声波液面控制系统有效控制缸内的液面，使灌装过程更平稳、准确。
具有灌装阀保险装置：当阀万一堵塞，高压料液可以通过保险装置泄压使阀体免遭损坏。具备精确的灌装量调节装置
JYF Rotary Filling Machine
This machine is suitable for filling juice, spices, cosmetics, cleaning products, pesticides, pharmaceutical products, petroleum products and other liquids.
The main motor and the bottle conveyor belts are with frequency control, easy to operate.
Ultrasonic liquid level control system to detect the cylinder surface to ensure the filling process stable and accurate.
It has filling valve safety device to avoid the damage when the valve in the congestion of the high pressure liquids. The machine fills precisely and has easy amount adjustment device
9，JYF多头12头自流式全自动自流灌装线
多头自流式全自动直线灌装线 ·
JYF Multi-nozzles (12 nozzles) Gravity Automatic Filling Line
Multi-Nozzles Gravity Automatic Filling Line
10.JYF润滑油（食用油）6或8头灌装压盖，旋盖，贴标，喷码生产线.
JYF oil (cooking oil) 6 or 8 nozzles filling and capping, labeling, marking production lines.
11.JYFG电子数粒灌装生产线
电子数粒灌装生产线是大型药厂的首选设备，集高速电子数粒机（00#胶囊90粒装1小时产能5000-6000瓶），干燥剂塞入机，自动搓盖机，不干胶贴标机，喷码机整线自动作业。
JYFG Electronic Counting Filling Production Line is tailor-made for large pharmaceutical companies which has the full automatic combination of the high-speed electronic counting (00 # capsule 90 capsules ), desiccant stuffing, twist capping , glue labeling & inkjet printing with productivity 5000-6000 bottles per hour
12.JYF小剂量10-50毫升全自动灌装生产线
JYF小剂量10-50毫升全自动灌装生产线专门针对药厂，化妆品厂定制设计的高速机型（10-50毫升液体1小时产能3600-4200瓶，集高速理瓶，多头柱塞式充填，震动盘上塞，盖，压或旋搓盖，高速贴标，喷码，装盒整线自动化作业。
JYF Small Dose (10-50 ml)Automatic Filling Production Line is designed and made for the pharmaceutical and cosmetics factory ,it is a full automatic production line combining the bottle Unscrambling, multi- plunger nozzles filling, plug, gland or capping on the vibration plate,, high-speed labeling, marking, boxing with capacity 3600-4200bottles per hour.
我厂只做精品！ 精益求精！
