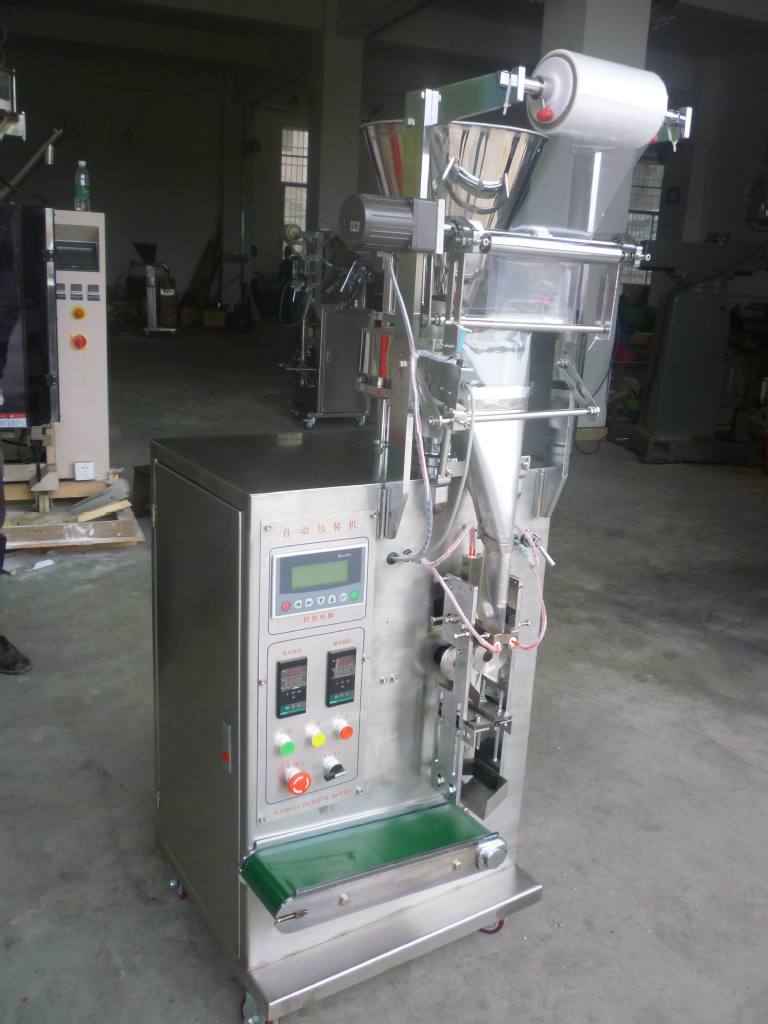

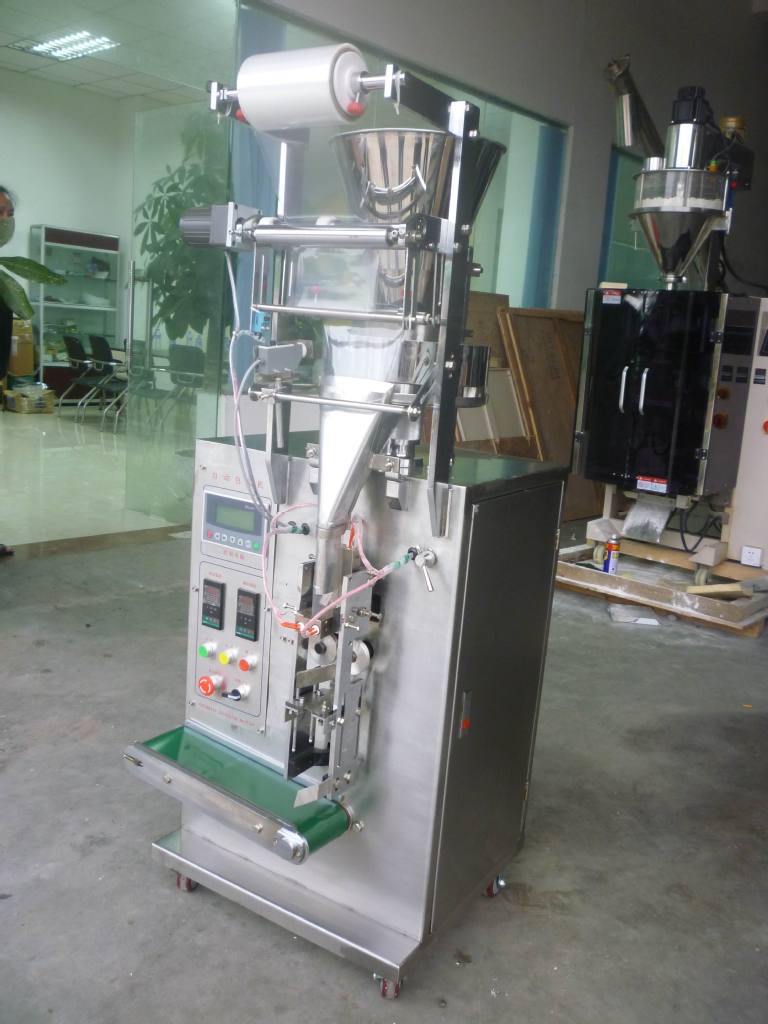

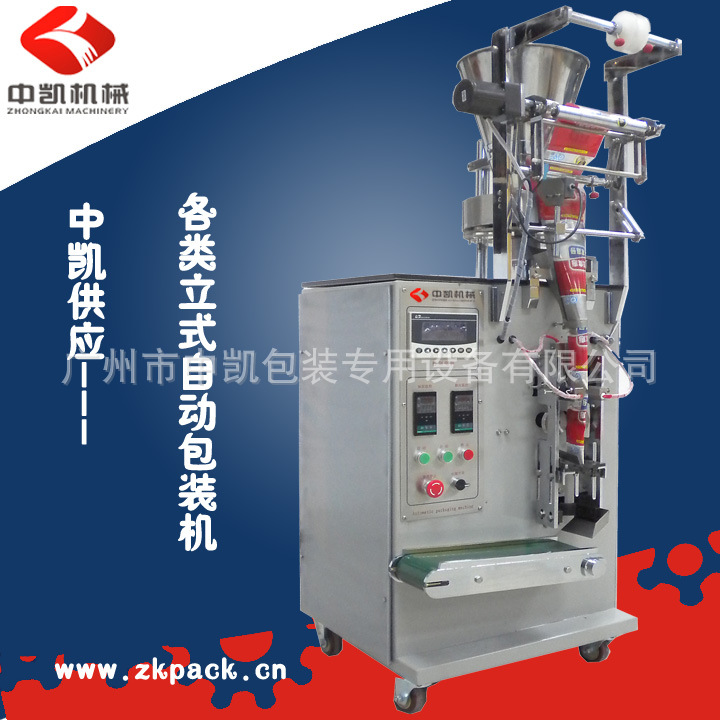

ZK-60K( 全自动颗粒包装机 )
ZK-60K( Full-Automatic Granule Packing Machine )
1.主要性能和结构特点:
l 自动包装机可以在包装过程中自动完成计量、制袋、充填、封口、切断、计数、批号等全部工作；
l 控制系统则自动化匹配各动作配合，改系统具有精准确度高，调整制袋长度简便，且准确无误；
l 具有色标控制系统，可获得完整的商标图案；
l 无级调整速度与袋长，包装速度与制袋长度可在额定范围内无级调整，不需要更换零件；
l 设计采用独特的嵌入式封口，加强型热封机构，智能型温控仪温度控制，具有良好的热平衡适应各种的包装材料，性能好、噪音低、封口纹路清晰、密封性强；
l 此设备下料方式为量杯下料计量；
l 设备封口形式为三/四边封网纹封口带易撕口，模具带钢字（可压印生产日期）；
l 设备主体部分和接触物料部分为不锈钢；
l 设备配置为一套量杯、料盘及成型器；
l 设备控制系统为日本三菱PLC .
- 1. Main features:
l Automatic finish weight, bag-making, filling, sealing, cutting, counting, lot number and so on；
l Automatic optimization match with all the program, this system can alternate the length of bag , thus it is easy and precise；
l It has color system controller, so can get the complete trade mark design；
l The length of bag and bag packing speed can be alternated by chain-gear stepless speed various without change spare part；
l Unique in-laidembedded mouth sealing, enhanced hot sealing mechanism;
l Intelligent temperature control by temperature controller, featuring fine heat balance, fine packaging performance, low noise, clear sealing texture and strong sealing performance;
l The main parts and contacted material steel is stainless ;
l The machine adopt measuring cup to weight and measure , the seal type is Three/four sides seal and the mold with print( can press and print the production date);
l The configuration of the machine is a set of measure glass , reel and bag making mold .
l Control system is “Sanling” PLC from Japan .
适用范围:
适用于食品、医药、化工产品中的松散、无粘性、细小颗粒状或粗粉状物料的自动包装：如：粗面粉、汤料、咖啡、冲剂、干燥剂、味精、白糖、食盐、麦片、葵花籽、西瓜子等颗粒或无粘性粗粉物料。
- 2. Scope of application :
This machine is widely used to pack any loose, non-cohesive granule products of the food, pharmaceutical, and chemical industries, such as dry powder , soup mix, instant drink mix, desiccant, monosodium glutamate, sugar, salt, coffee, cereal etc.
3.全自动特点：
◆无极调速：包装速度在一定范围内可以无级调整，达到与制袋、充填、封合、切断环节最佳匹配，使包装过程稳定可靠。
◆袋长可在额定范围内任意设定，步进电机驱动，拉袋稳定可靠，速度可选定。
◆在包装膜有色标定位标志时，制袋过程可实现光电自动检测、定位、封合、切断，保证了制袋图案完整。
◆具有自诊断、故障提示功能。
◆温度控制用高精度的PID调节，具有极好的热封合稳定性，保证了对不同材料的封合质量。
◆操作维修方便：间歇式结构简单，易于操作和维修。
◆通用性强：通过更换不同的充填头便可达到一机多用的目的。
◆自动打印产品批号，可加易撕口，便于使用。
◆全套采用优质器件，质量稳定，噪音小，故障率低，使用寿命长。
u 本机小巧独特，外形美观，所有与物料接触的器件均由不锈钢和无毒耐腐塑料制成，符合食品和医药包装的要求（即GMP要求）。特别适用于食品、医药及化工等行业。
3. The features of full-automatic：
u Speed Limitless: Packing speed shall be limitless arranged in some extend , which can best match the steps of making bag/fulfilling/sealing and cutting .
u The bag length can be set free at some specific range , using the “Bujin” Motor , making bags stable and the speed can be controlled .
u The process of bag-made can reach self-automatic inspecting/location/sealing and cutting when there are the signs of color locating in packing films .
u Equipment itself has the function of self-diagnosing and error-pointing .
u Controlling temperature by high exact PID , which ensure the sealing quality of different packing film material and will be in more stable of hot sealing .
u Conveniently operate and repair , because of its intermittent simple structure .
u Common using available ：Packing 2-120g in a bag by changing the measure glass .
u Automatically print production lot No. , and adding the easy-tear type convenient .
u Using the superior steel parts , quality to be stable , noise to be bitter , error rate to be low and service life to be long .
u Good appearance , smart and unique , the steel of contacting material is stainless steel or poisonousless and corrosion resistance plastic , which reaches the packing requirement of food and medicine ( say GMP ) , especially available in the industries of food , medicine .
技术差数/Specification:
型号/Model | ZK-60KB |
生产能力/Capacity | 30-60bags/min |
计量范围/Range of measurement | 2-120g (需要换量杯/should change the measuring cup ) |
制袋尺寸/Bag Size | （L)40-160mm (W）40-120mm |
封口形式/Sealing type | 三边封/四边封 |
总功率/Power | 1.2KW |
电源电压/Voltage | 220V/50-60HZ或380V三相 |
包装材料/Packing material | 纸/聚乙烯、聚脂/铝箔/聚乙烯、尼龙/聚乙烯、茶叶滤纸等 Paper/the polyethylene，polyester/aluminum foil/polyethylene，nylon/polyethylene，tea filter paper，etc |
净重/Net weigh | 220kgs |
毛重/Gross weigh | 250kgs |
外型尺寸/Overall Dimension | （L)750*(W）730*（H）1680mm |
打包后尺寸/After packing | （L)850*(W）830*（H）1780mm |
