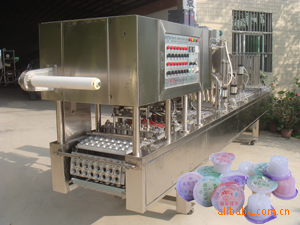

CFD-24省膜系列自动充填封口机
（CFD-24 SERIES AUTOMATIC FILLING & SEALING MACHINE）
主要技术参数
Main Technical Data:
机型：Model: CFD-24
包装速度：Capacity: 23040-28800/per hour
封膜宽度：Film Width: 455mm
充填容量: Filling Volume: 30ml
使用电源：power requirement: 380V50HZ
电机功率：Motor Power: 1.5kw
加热功率：Heating power: 4.5kw
使用气压：Air Pressure: 0.6Mpa-0.8Mpa
最大耗气量：Maximum Air Consumption: 0.8m3/min
外形尺寸：Machine Dimension: 4500X850X1700(LXWXH)
调速方式：Speed Governors: 无级调速 Frequency Converting
整机重量：Weight: AproX1000kg
功能特点:全新设计,专用于果冻、布丁、果奶、酸奶、牛奶、豆奶调料品等充填封口。
本机从落杯、送料、充填、封口、光电图案校正、剪切、出料为全自动作业。
本机电器及气动元件采用德国、日本、台湾等名优产品。根据用户需要，可配用PLC控制系统
及加装打印出厂日期装置。本机主要部件为不锈钢材料制作，符合食品卫生标准。
Instruction
1.It is a new designed machine to fill and seal plastic cup for jelly,
pudding,yoghurt,milk,Soydean,and so on.
2.From laying cup ,delivering ingredient,filling,sealing,photo electric
pattern proofreading,cutting to conveying,this mac Hine works automatically.
3.The electric system and pneumatic components of this machine Arc adopted
German,Japanese and Taiwanese famous brand.According to customer\'s reduirement,
this machine can be equipped with PLC,device of production date printing.
4.The material of this machine\'s main components is stainless steel, which conform
to food hygiene standard.
广东省揭东华宇食品包装机械厂
专业生产各式食品机械：碳酸饮料灌装机、矿泉水、纯净水灌装机、豆奶酸奶铝萡瓶装机、各式大小、形状不同的CFD果冻冲填封口机还有高技术的两色果冻冲填封口机， 专业为客户设计定制各种食品机、专业知识及技术参数详情欢迎请登陆www.hyspbzjx.cn查询。
联系电话：13543906392 林先生
欢迎咨询：QQ：284343159
