采用中间齿轮传动结构，是为12~80马力拖拉机配套的耕作机械。该机采用宽耕幅、对称悬挂使轮迹全部覆盖。该机质量可靠，性能优良，能适合旱地和水田操作。有省时、省力、作业质量高成本低等特点。

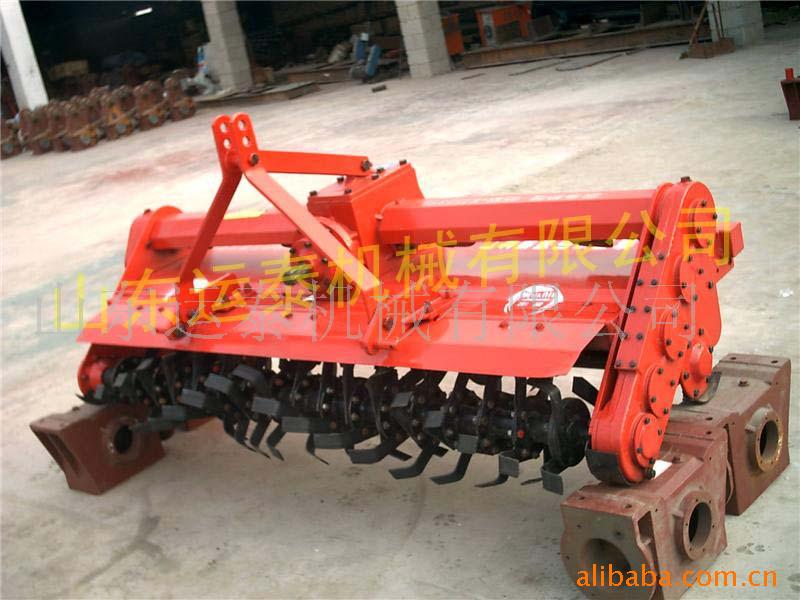

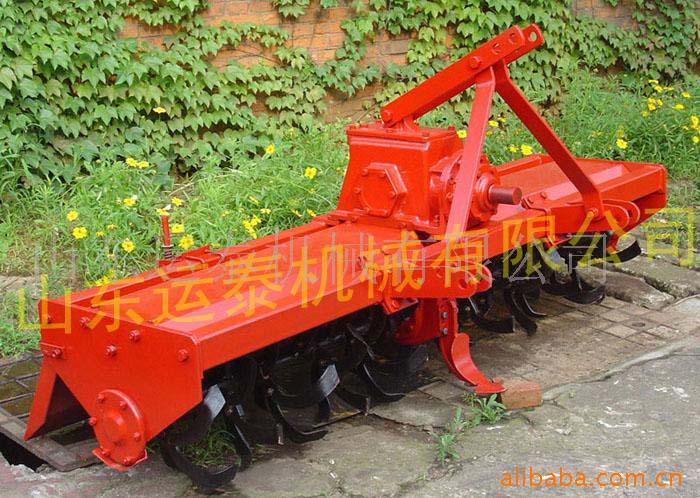

Rotary plow
With middle gear drive structure matchable for 12-80 horsepower tractor, wide coverage, symmetric hanging structure covering tire mark, reliable quality, high performance; suitable for dry land and paddy fields, saving time and effort, with low cost, etc.
旋耕机型号 | 1GQN-125S | 1GQN-140S | 1GQN-150S | 1GQN-160S | 1GQN-180S | 1GQN-200S | 1GQN-230S | 1GQN-250S |
配套动力（kw） Matched power | 13.4－14.9 | 18.6-26.1 | 22.5-29.8 | 29.436.8 | 36.8－44.1 | 40.4－51.5 | 58－73 | 68－78 |
耕幅（cm） Working width | 125 | 140 | 150 | 165 | 180 | 200 | 230 | 250 |
耕深（cm） Working depth | 旱耕：10－14 水耕：12－16 | 旱耕：14－16 水耕：16－18 |
动力输出轴转(r/min) Speed | 540 | 720 | 540 | 720 | 1000 |
外型尺寸（mm）长×宽×高Overall Dimensions | 960×1456
×1096 | 960×1656
×1096 | 960×1756
×109 | 960×1856
×1096 | 2100×1020
×1150 | 2300×1020
×1150 | 2650×102
0×1150 | 2850×1020
×1150 |
整机重量（kg）Weight | 248 | 253 | 268 | 368 | 377 | 391 | 413 | 430 |
