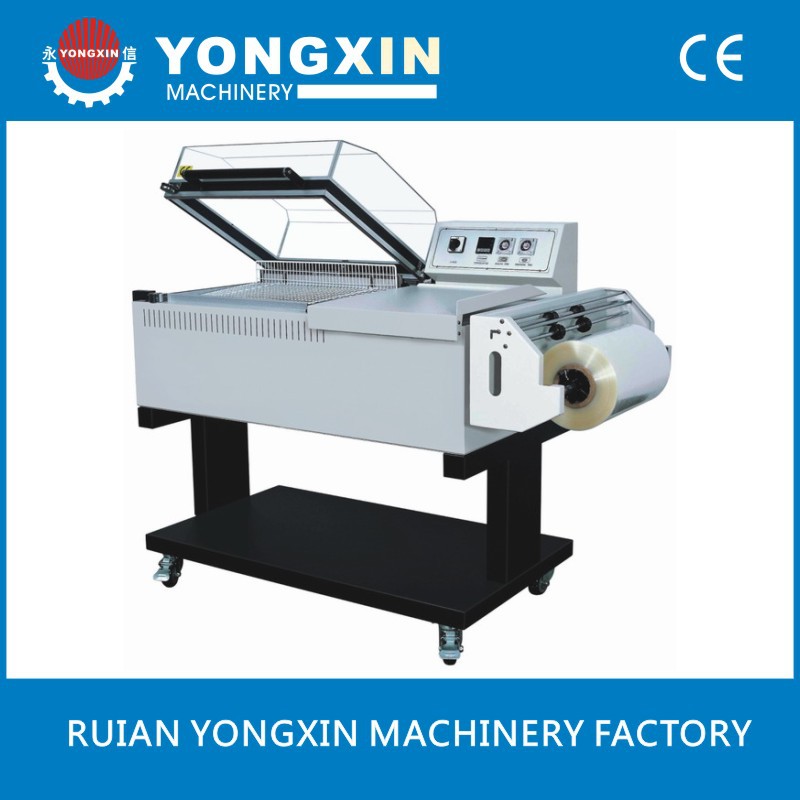

BTM-400 二合一热收缩包装机
BTM-400 二合一热收缩包装机
本机广泛适用于食品、饮料、医药、音像制品、五金、化妆品、书籍、玩具、塑胶、电子等产品的外包装，特别适用于商场、专卖店，写字楼及试验室空间局限的场地使用。
This machine is widely used for outside shrink packing by film, such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, book, toy and electronic products etc; especially suitable to put and use it in a small room where space is limited such as supermarket, monopolization shop, office and some experimental room etc;
- 集封口、收缩一次完成。
- 透明玻璃胶罩可清楚看到封口、收缩全过程。
- 封口采用玻璃纤维刀槽，抗粘耐温镍铬合金封切刀，封口整齐不开裂、不焦化。
- 装有特制滚轮针孔设备，充分排去膜内空气。
- 滑动式胶膜支架，可放置各种规格收缩膜，任意调整。
- 可连续长时间操作不会导致周围环境过热。
- 耗电量小，平均每小时耗电量仅2.5kw。
- PPS耐温材质刀夹头，能经受长期使用考验。
- 可根据包装物尺寸任意调整高低。
- BTM-400A配备不锈钢输送网，高度可随意调整; 产品包装后自动输出，加倍提高生产效率。
- Performance Characteristics：
- Integrated sealing and shrinking in one step.
- Transparent hood makes the sealing and shrinking visible.
- Adopts glass fiber cutler\'s isolator and nickel alloy cutter in order to result in perfect sealing line, to avoid the film sticking the cutter.
- It furnished special roller with pin to make small holes on the film.
- Slidable film holder, can hold various specifications of shrink film and easy to adjust.
- Might not make over hot around environment after long time operation.
- Low power consumption, only 2.5kw per hour.
- Adopts PPS thermostable cutter clip to bear heavy intension after long time operation
- The heighth of the package supporting mesh inside the chamber can be adjusted for different sizes of products.
- BTM-400A equipped stainless steel conveying mesh with the height adjustable transporting the products out after the sealing and shrinking automatically, double increase the packing capacity.
- 主要技术参数：
- Main Technical Parameters：
| 型号 | BTM-400 |
| 最大包装尺寸 | (L+H)=450mm (W+H)=330mm (H)=150mm |
| 最大封口尺寸 | (L)500×(W)400mm |
| 包装速度 | 500～800件/小时 |
| 电源及总功率 | 220V 50Hz 4kw |
| 机器重量 | 125kg |
| 机器外形尺寸 | (L)1380×(W)690×(H)1065mm |
BTM-400 二合一热收缩包装机
图一
BTM-400 二合一热收缩包装机
图二
BTM-400 二合一热收缩包装机
图三
BTM-400 二合一热收缩包装机
图四
BTM-400 二合一热收缩包装机
图一
BTM-400 二合一热收缩包装机
图二
BTM-400 二合一热收缩包装机
图一
BTM-400 二合一热收缩包装机
图二
BTM-400 二合一热收缩包装机
图三
BTM-400 二合一热收缩包装机
BTM-400 二合一热收缩包装机
BTM-400 二合一热收缩包装机
- 整机保修一年，电气温控仪3年包换，供方负责上门调试及培训操作工 。
- 随机专用工具一套，随机易损配件一套
