机型 Model | | JQ-9060fashinon model |
激光类型 Laser-type | CO2激光管 |
激光功率 Lader-power | | 60w |
| | |
切割面积]Cutting area | | 880*900mm |
雕刻速度 Engraving speed | 0-1000mm/s |
切割速度 Cutting speed | 0-400mm/s |
重复定位精度 Repeating location | ≤±0.01 |
支持图文格式 Graphic format supported | BMP, HPGL(PLT), JPEG, DST, DXF,AI |
运行系统 Moving system | DSP专业控制,微步恒流细分 Professional controlling, micro elegancy |
通讯接口Communication connection | USB（脱机Off-line） PCI(联机)可选 |
工作电压 Working voltage | 220V±10% 50HZ |
切割平台 Cutting platform | 选配多种雕刻工作平台（选配） Equipped with a variety of engraving working tables (Match) |
辅助装置 Auxiliary equipments | 冷却系统,排风系统Cooling system, ventilation system |
控制软件 Controlling software | 齐盛激光专用软件The special software for Qisheng Laser配有中英文界面Has the Chinese and English contact surface |
外形尺寸 Machine dimension | | 1350*1050*950 |
| | |
耗材：封离式CO2激光管 Consumes the material Service life: 8-18 months | CO2 Laser tube | |
USB可脱机DSP主板+液晶显示
USB may off-line DSP the motherboard + liquid crystal display
国内独家采用三相步进电机+三项驱动器+1/3减速同步轮；可确保切割稳定。
Domestic own uses three-phase step-by-steps the electrical machinery + three item of drivers +1/3 to decelerate the synchronizing wheel; May guarantee that cutting is stable
进口镜片和国产激光管Choiceness easy damage materials

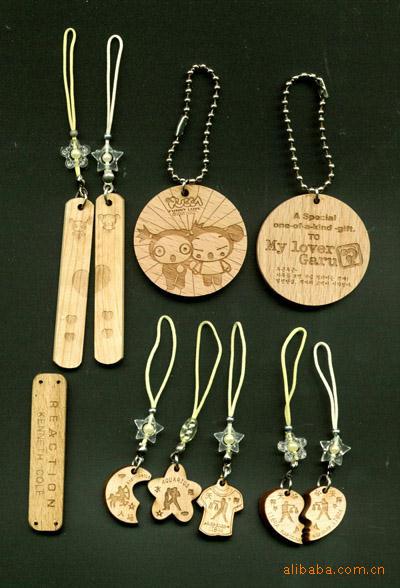

适用材料：密度板、竹木制品；双色板、布料；亚克力、皮革；玻璃、玉石、大理石、有机玻璃等各种非金属
Application scope:non-metals such as density boards, bamboo and wood products, dual-color boards, cloth, acryl, leather, glass, jade stone, marble and organic glass.
