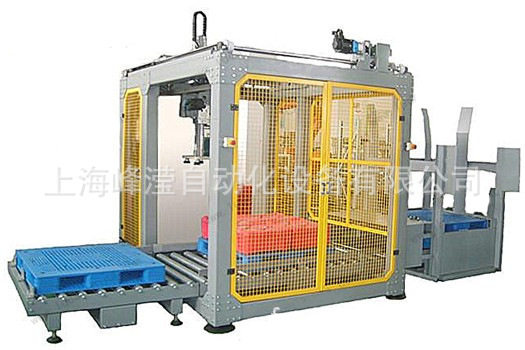

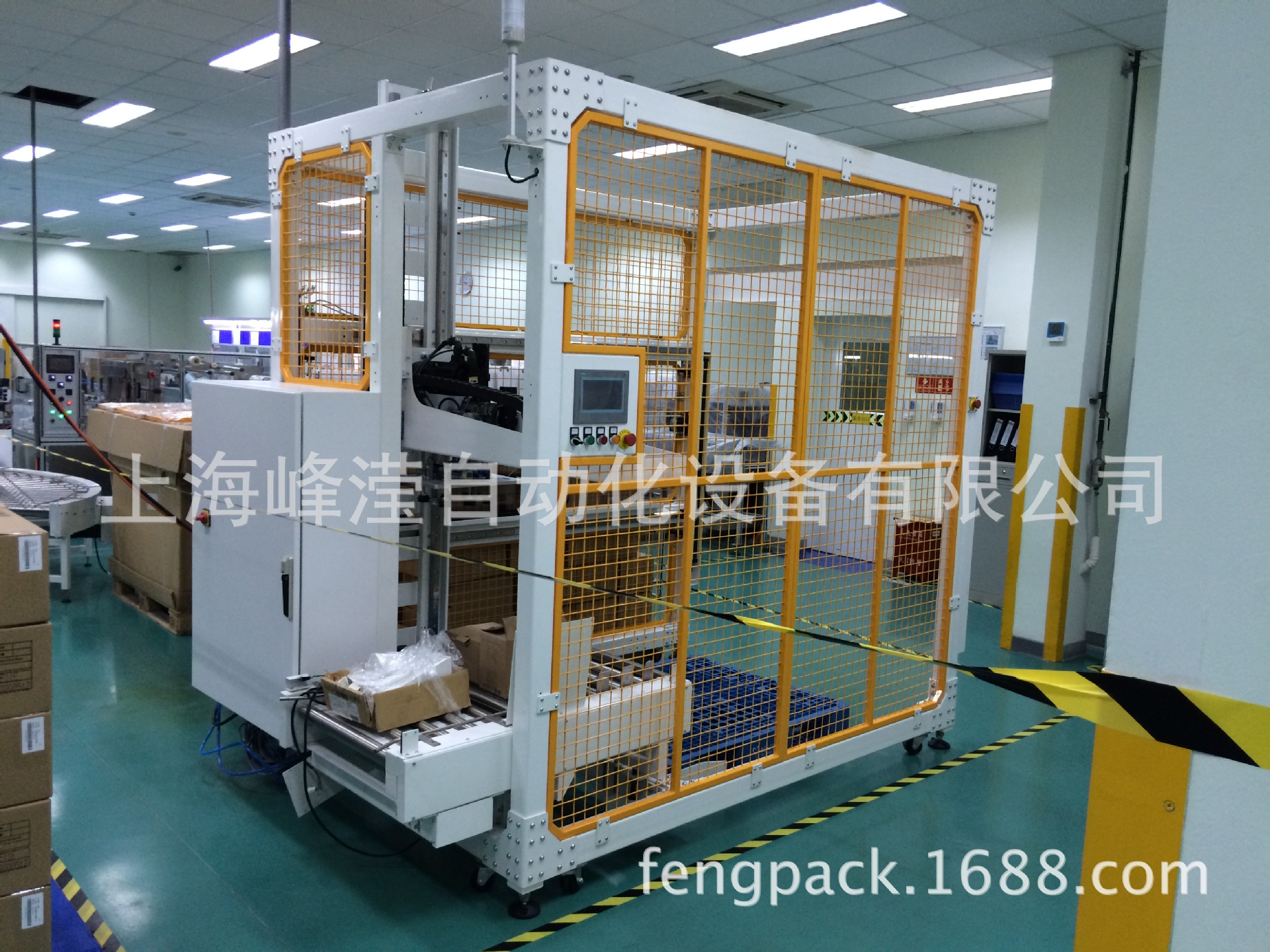

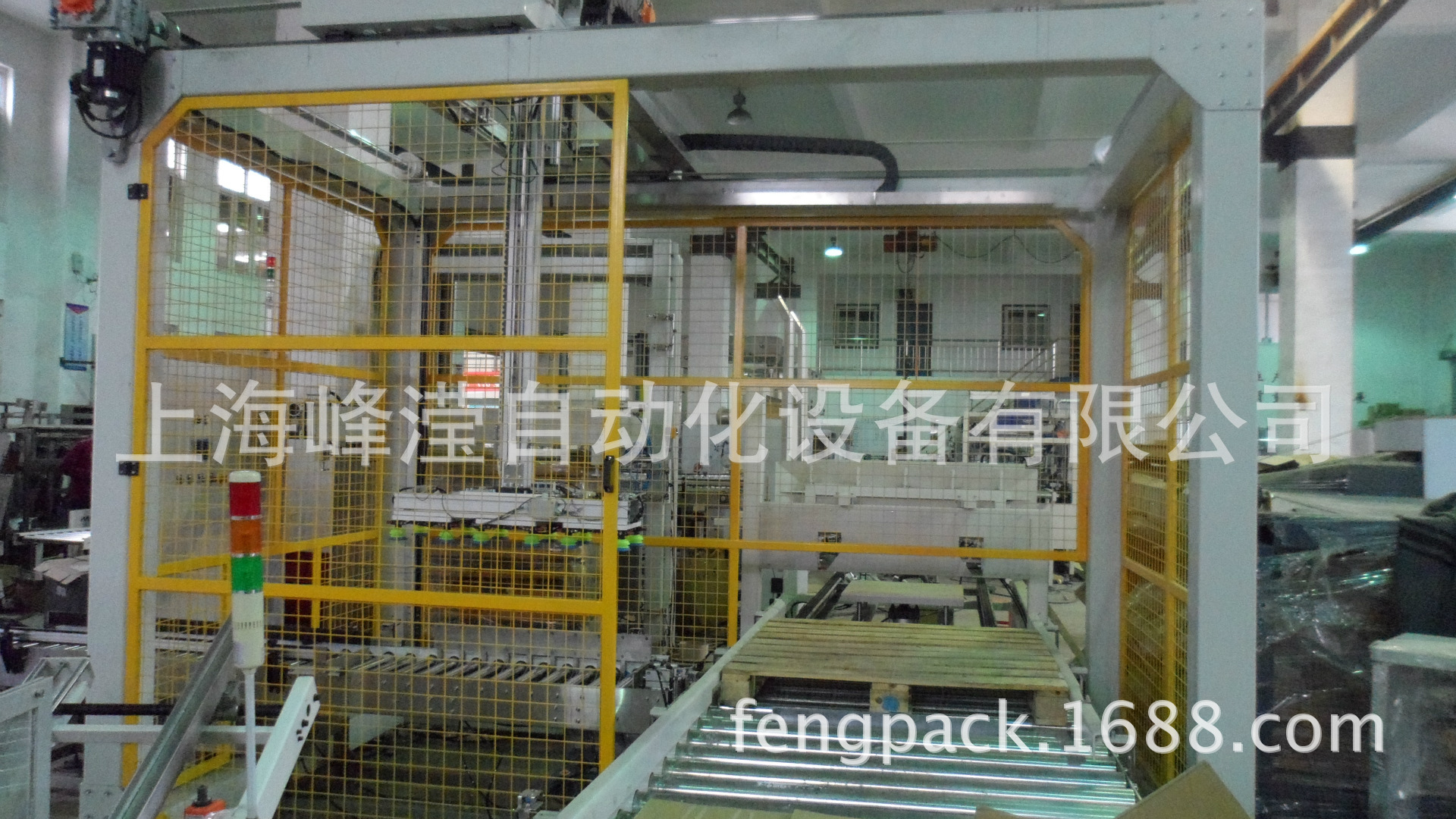

FY-M02自动伺服码垛机 Automatic servo palletizer
设备特性：
- ● 本机由Z,X,Y,R轴和抓手组成码垛主系统，同时配合自动供托盘机，码垛输送线，进出料输送线等组成一套全自动码垛系统。
- ● 本设备采用PLC+触摸屏控制，实现智能化操作管理，简便、易掌握。可大大地减少劳动人员和降低劳动强度。采用高速、平稳、节省空间之理念设计。一机多用，调整迅速，不必为更换堆叠产品而烦恼。
- ● 采用日本CMC公司生产的链条具有抗磨损好、精度高、传输稳定等特点。
- ● 采用德国FESTO或台湾CHELIC、日本SMC生产的气动元件和气缸，质量、性能可靠。
- ● 安全门、罩设有电器感应装置，当罩门打开时，机器停止工作，可对人员进行保护。
- ● 栈板库容量大，可容纳12-15个空栈板，可实现自动供应栈板。
- ● 不用更换堆垛零件即可以完成几种堆垛方式。适用范围：瓦楞纸箱、塑胶箱、桶状包装物、袋状包装物。
Device characteristics:
● The machine consists of Z, X, Y, R-axis palletizing main system and the composition of the starting point, in conjunction with automatic machine for pallets, stacking conveyor, conveyor lines and other components out of a fully automatic palletizing systems.
● This equipment uses PLC + touch screen control, intelligent operation management, simple and easy to learn. Can greatly reduce labor personnel and reduce labor intensity. High-speed, stable, space-saving design concept. A machine, adjust quickly, without having to worry about replacing the stacking products.
● CMC produced by the Japanese chain has good abrasion resistance, high precision, stable transmission characteristics.
● Germany FESTO and Taiwan CHELIC, Japan SMC pneumatic components and cylinder production, quality and reliable performance.
● security doors, hood has electrical sensing device, when the cover door open, the machine stops working, people can be protected.
● Pallet large storage capacity, which can accommodate 12 to 15 empty pallets, automatic supply of pallets.
● stacking without replacement parts that can be done in several ways stacking. Scope: corrugated boxes, plastic boxes, barrel packaging, pouch-like packaging.
技术参数Technical parameters
型号 | Model | FY-M02 |
适用纸箱 | Carton Size | L200-500/W200-450/H100-450mm |
台面高度 | Table Height | 450±50mm |
速 度 | Speed | 2-8 box/min |
功 率 | Power | 220V/380V 50/60HZ 3.5KW |
码垛高度 | Stacking Height | ＜2000mm |
栈板尺寸 | Pallet Size | L1200*W1200mm |
气 源 | Pneumatic | 0.4-0.8Mpa |
机器尺寸 | Machine Size | L1800 x W2000 x H2300mm |
