PUR涂胶机、热胶涂胶机、单面涂胶机

价格
起批量
58000.00
1
商品货号
4977066
物流
山东 青岛市
x
北京 天津 上海 重庆 河北 辽宁 黑龙江 吉林 山东 山西 安徽 浙江 江苏 江西 广东 福建 海南 河南 湖北 湖南 四川 云南 贵州 陕西 甘肃 青海 宁夏 内蒙古 广西 西藏 新疆 香港 澳门 台湾
请选择省份
标准价 :
¥58000.00
支付方式
保障服务
订购数量 :
起售量 (件) 标准价 采购量 是否有货
1¥58000.00
有货
总价
58,000.00

具体详细信息、价格请您直接联系客服或者致电:

白经理 15363924293









XRTJ1300单双面涂胶机  Single/ Double Sides Glue Spreader

型号   Model

XRTJ1300

最大板材宽度   Max. glue spreading Width

1220mm

板材厚度  Max. working thickness

2-60mm

送材速度  Material Conveying Speed

25m/min

总功率   Total Power

1.1kw

外形尺寸   Overall dimensions

1750*650*1250mm

机器重量   Net Weight

880kg

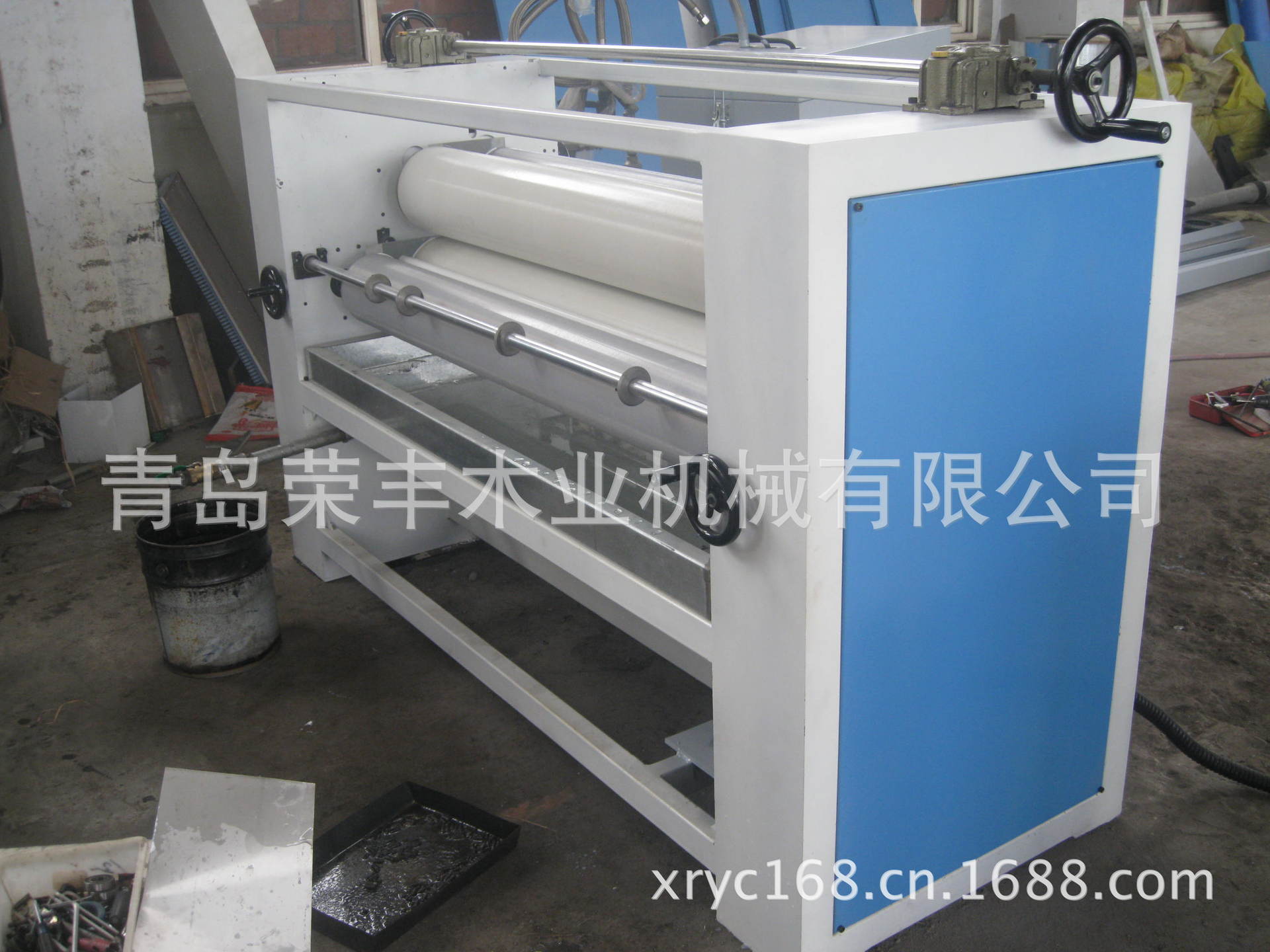

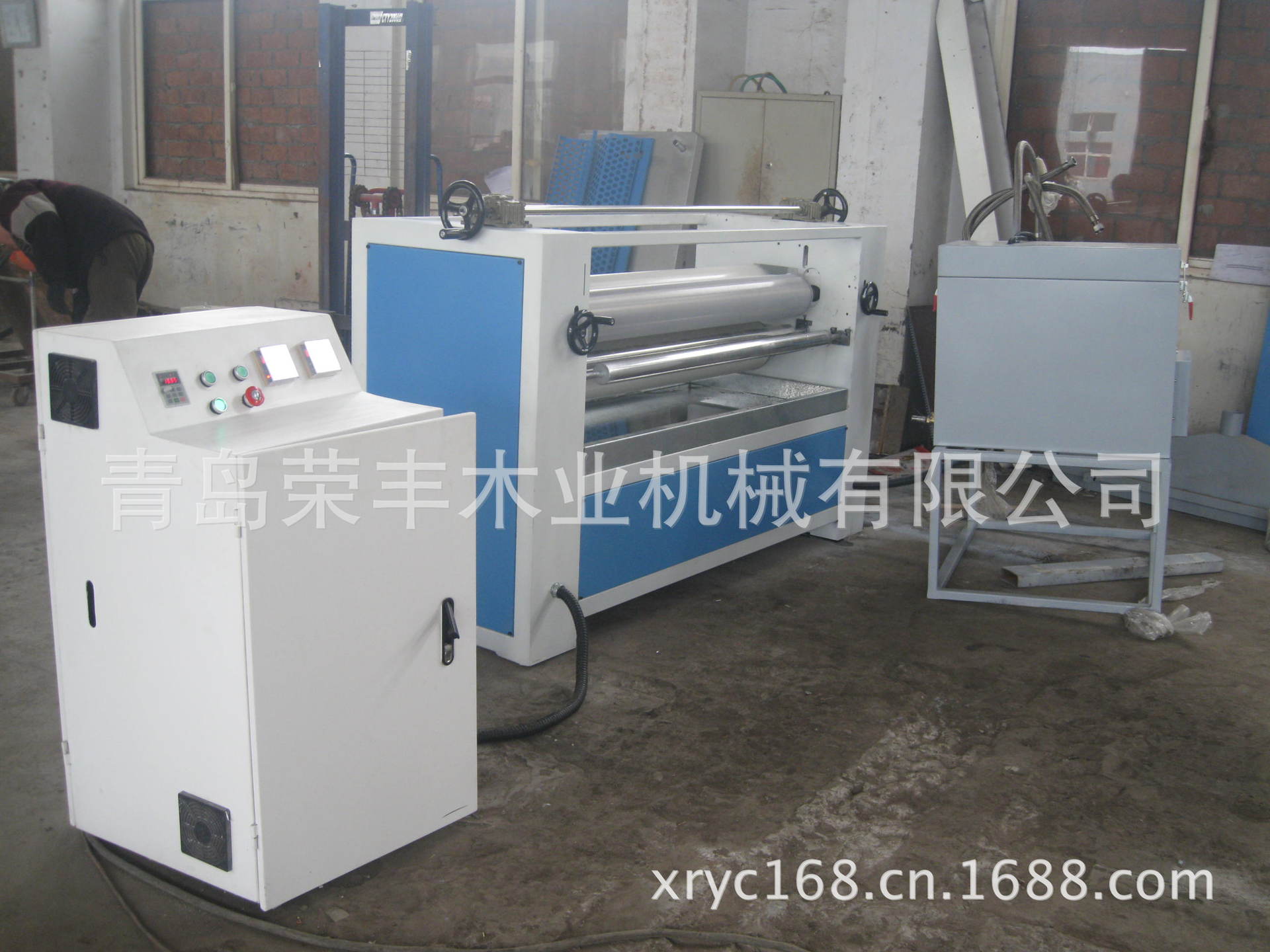

This type of machine can spread glue on both sides of working piece at the same. The main machine is made by steel with solid and sturdy structure. The gap between spreading rolls and squeezing rolls can be adjusted freely by hand-wheels. Spreading rolls are made of rubber covering with treated surface. The pressure and the quality of glue can be regulated by pneumatic system according to the type of glue and the material of work piece. The control system adopts inverter with step less motor. It is the classical machine for simple working.

这种类型的机器可以同时在双面涂胶水,主要设备是有扎实和坚固的钢结构构成。传播辊和挤压辊之间的空隙可以通过手轮来自由调节。传播辊是由橡胶覆盖的表面处理。压力和胶水的质量可以根据胶水类型和工件材料调节气动系统。该控制系统采用无级变频电机,这是进行简单工作的经典机器。

XRTJ1300单双面涂胶机  Single/ Double Sides Glue Spreader

型号   Model

XRTJ1300

最大板材宽度   Max. glue spreading Width

1220mm

板材厚度  Max. working thickness

2-60mm

送材速度  Material Conveying Speed

25m/min

总功率   Total Power

1.1kw

外形尺寸   Overall dimensions

1750*650*1250mm

机器重量   Net Weight

880kg

This type of machine can spread glue on both sides of working piece at the same. The main machine is made by steel with solid and sturdy structure. The gap between spreading rolls and squeezing rolls can be adjusted freely by hand-wheels. Spreading rolls are made of rubber covering with treated surface. The pressure and the quality of glue can be regulated by pneumatic system according to the type of glue and the material of work piece. The control system adopts inverter with step less motor. It is the classical machine for simple working.

这种类型的机器可以同时在双面涂胶水,主要设备是有扎实和坚固的钢结构构成。传播辊和挤压辊之间的空隙可以通过手轮来自由调节。传播辊是由橡胶覆盖的表面处理。压力和胶水的质量可以根据胶水类型和工件材料调节气动系统。该控制系统采用无级变频电机,这是进行简单工作的经典机器。

热卖推荐

¥40000.00 ¥48000.00 ¥40000.00 ¥75000.00

¥72000.00  ¥40000.00 ¥40000.00
规格参数
型号 XRTJ1300   重量 880  (kg)
品牌 兴荣木工机械   加工定制 是
产品类型 全新   工作形式 全自动
家具制造机械种类 涂胶机   类型 覆面机
是否进口 否   适用范围 广泛
送料速度 25m/min   外形尺寸 1750*650*1250
最大加工厚度 2-60mm   最大加工宽度 1220
