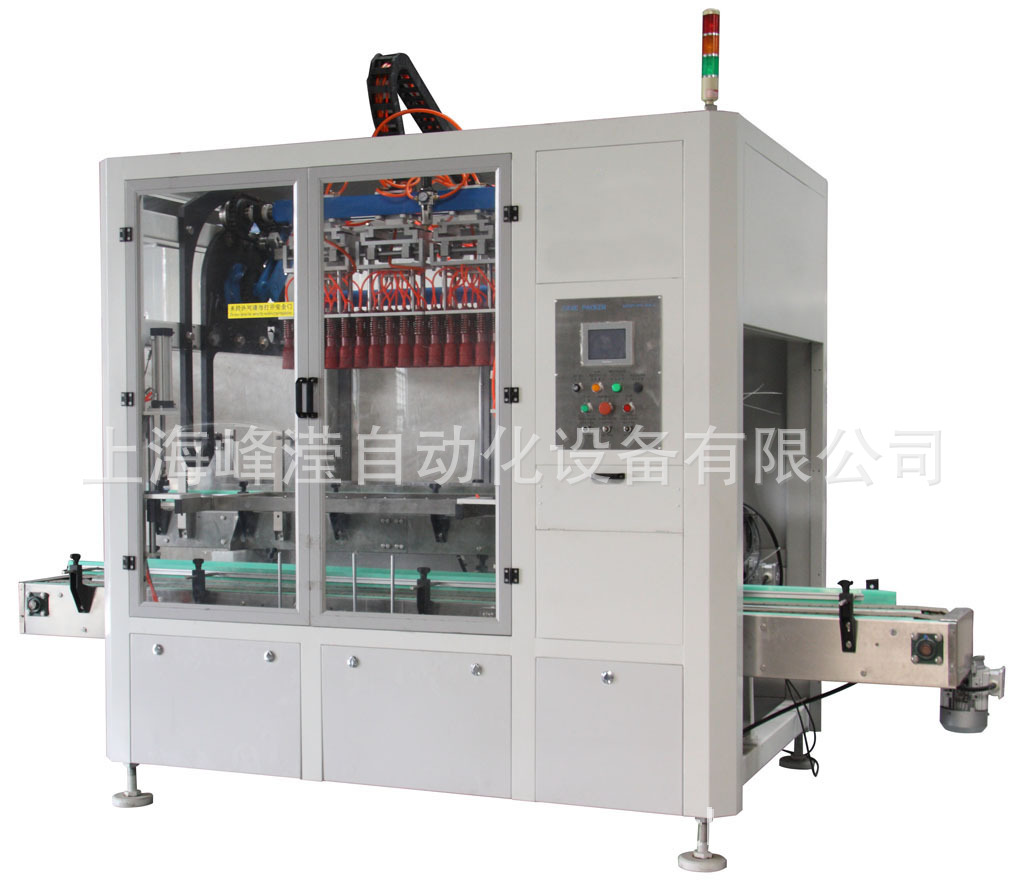

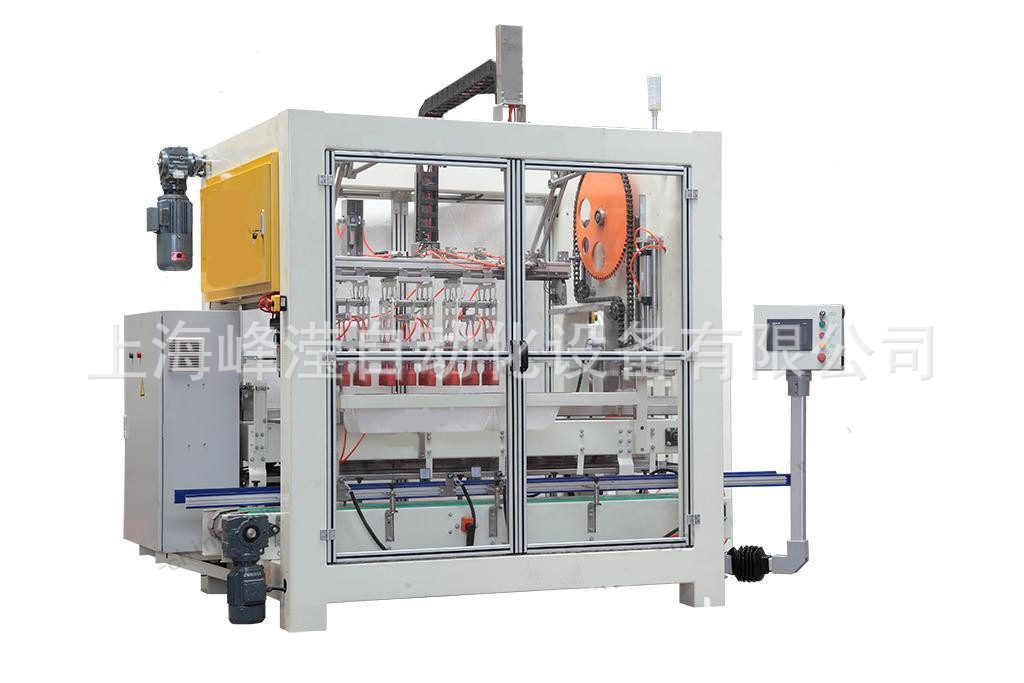

FY-Z01自动移栽式装箱机 Automatic Transplant Type Carton Packing Machine
设备特性：
● 根据装箱要求，能自动将产品整理排列后从产线移栽装入纸箱内。
● 适用范围广，可适用于多种产品装箱（瓶类,盒类,袋类,桶类）系列
● 本机采用P.L.C + 触摸显示屏控制。设有缺料报警停机，无产品不装箱等安全装置，特别适合与包装流水线配套使用
Device characteristics:
● According to the packing requirements, the product can be automatically loaded into the carton after finishing arranged from the production line transplanting
● Wide range of applications, suitable for a variety of products packing (bottles, boxes, bags, barrels) Series
● The machine adopts P.L.C + touch screen control. Has shut warning downtime, non-product packing and other safety devices are not particularly suitable for supporting the use of packaging lines.
技术参数Technical parameters
型号 | Model | FY-Z01 |
适用纸箱 | Carton Size | L200-450/W150-400/H100-350mm |
台面高度 | Table Height | 450±50mm |
装箱速度 | Speed | 2-10 box/min |
功 率 | Power | 220V/380V 50/60HZ 3.5KW |
气 源 | Pneumatic | 0.4-0.8Mpa |
机器尺寸 | Machine Size | L1500 x W2000 x H2300mm |
机器重量 | Machine Weight | 450Kg |
