精电容60v25000uf电解电容耐压仪,电解电容编带机,电解电容经销商
产品电压：60V
产品容量：25000μF

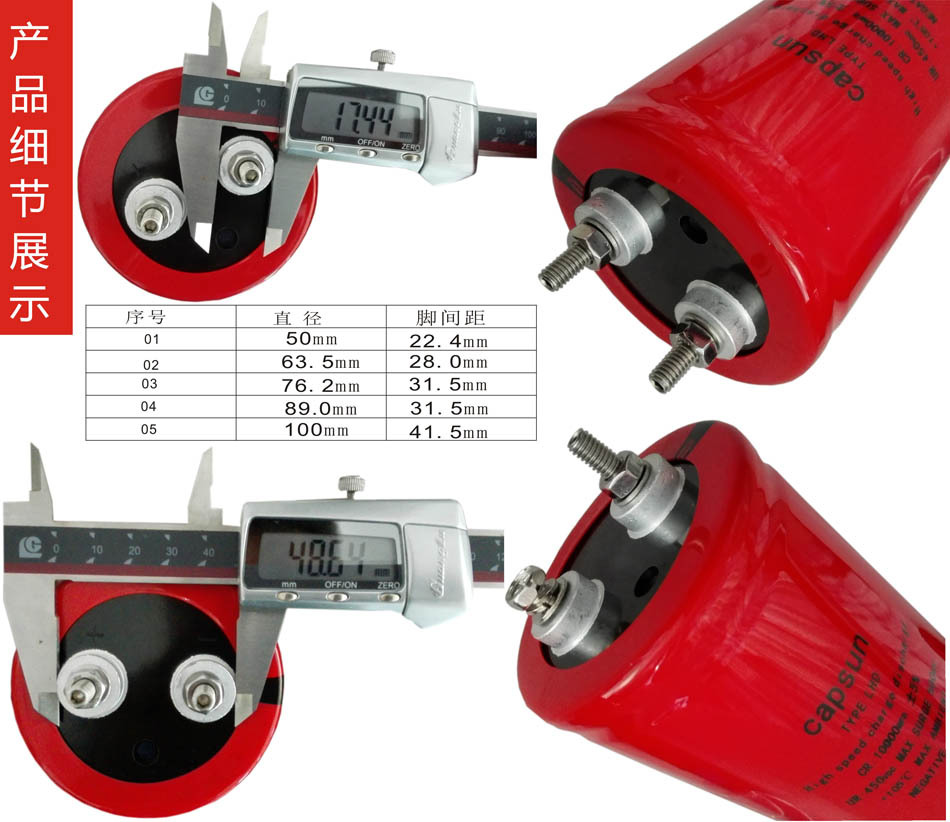

产品尺寸：35*130
产品使用温度：105度
产品使用寿命：8000小时

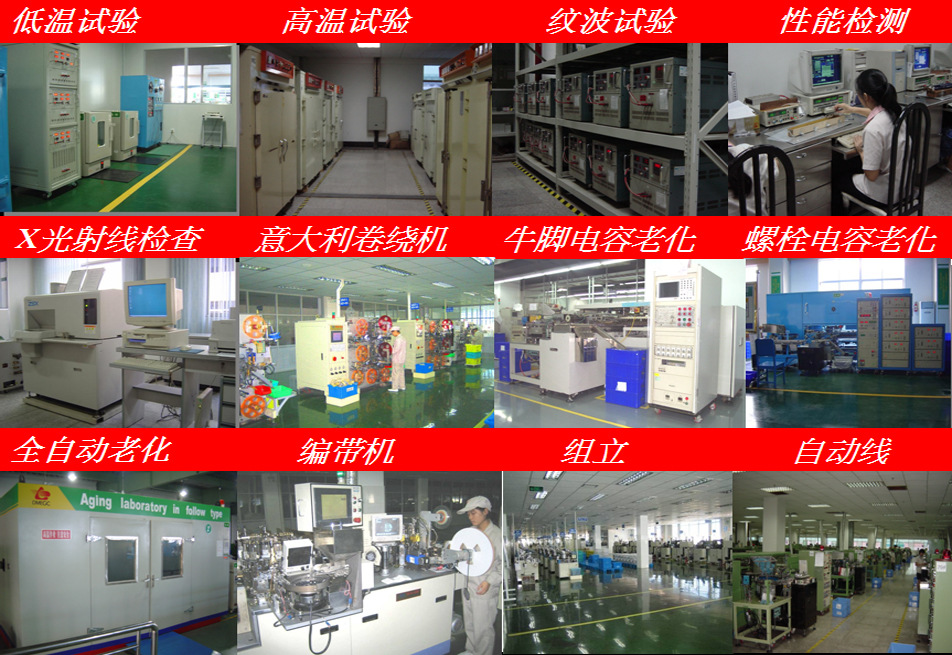

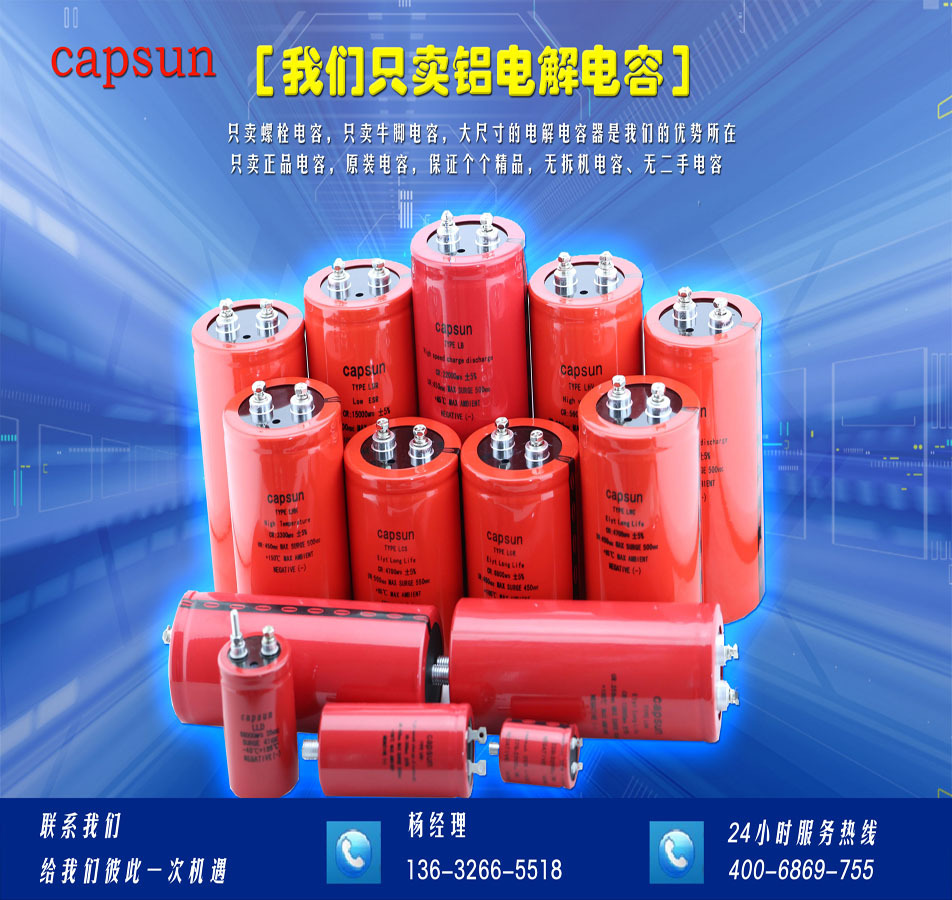

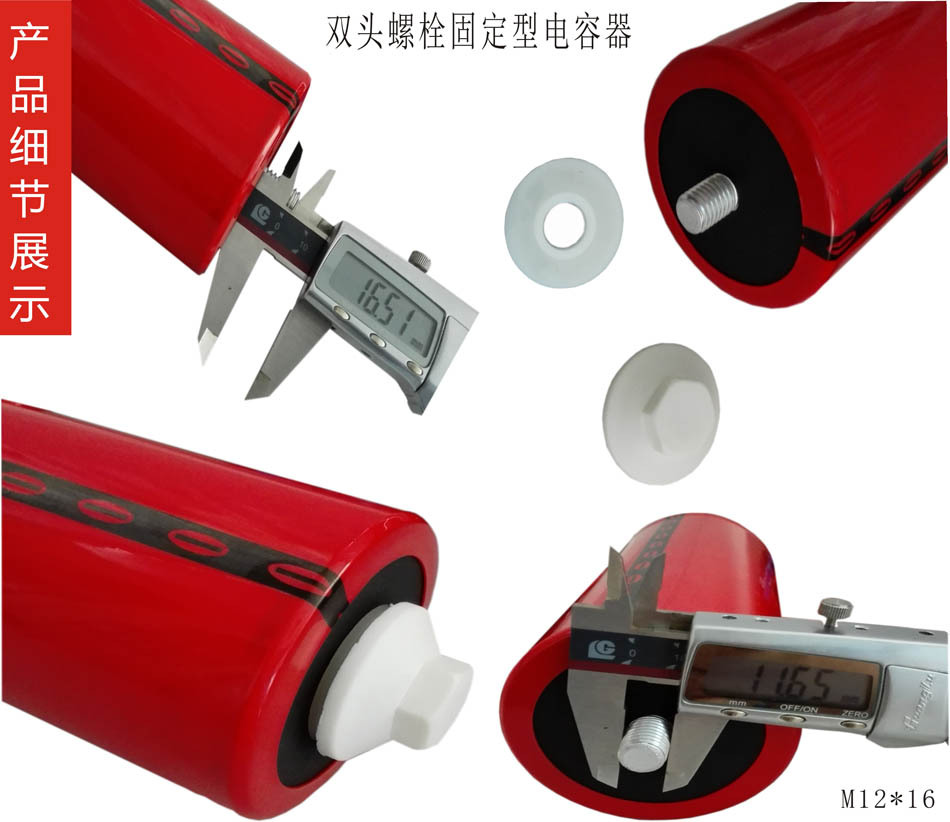

以下螺栓电解电容，牛角电解电容，焊片电解电容，全新品，综下所述，欢迎参观工厂，欢迎看储能电容|储能铝电解电容|充放电电容|急充放电电容|电焊机专用电容|高储能电容器|铝电解电容|电解电容器|大容量电容器|储能电池|补偿电容|电容器厂家|电容器生产厂家|吸收电容器|超大容量电容器|
注：尺寸、温度、寿命均可定制 D x L [mm]
等效串联电阻值100Hz,20℃[mΩ] 额定纹波电流（Ams/105℃,100Hz）
电压容量 尺寸 ESR 纹波电流
4100UF60V 35*40 等效串联电阻值100Hz,20℃60.6mΩ 额定纹波电流3.6Ams/105℃,100Hz
7000UF60V 35*55 等效串联电阻值100Hz,20℃39.0mΩ 额定纹波电流5.0Ams/105℃,100Hz
8300UF60V 35*65 等效串联电阻值100Hz,20℃32.7mΩ 额定纹波电流5.9Ams/105℃,100Hz
12000UF60V 35*80 等效串联电阻值100Hz,20℃28.6mΩ 额定纹波电流6.8Ams/105℃,100Hz
13000UF60V 35*55 等效串联电阻值100Hz,20℃27.9mΩ 额定纹波电流7.2Ams/105℃,100Hz
15000UF60V 35*90 等效串联电阻值100Hz,20℃26.1mΩ 额定纹波电流7.8Ams/105℃,100Hz
15000UF60V 35*65 等效串联电阻值100Hz,20℃25.6mΩ 额定纹波电流8.2Ams/105℃,100Hz
15000UF60V 50*55 等效串联电阻值100Hz,20℃28.0mΩ 额定纹波电流8.2Ams/105℃,100Hz
18000UF60V 35*105 等效串联电阻值100Hz,20℃22.0mΩ 额定纹波电流9.6Ams/105℃,100Hz
18000UF60V 50*65 等效串联电阻值100Hz,20℃22.6mΩ 额定纹波电流7.7Ams/105℃,100Hz
21000UF60V 35*115 等效串联电阻值100Hz,20℃19.3mΩ 额定纹波电流8.9Ams/105℃,100Hz
21000UF60V 35*80 等效串联电阻值100Hz,20℃19.5mΩ 额定纹波电流9.4Ams/105℃,100Hz
25000UF60V 35*130 等效串联电阻值100Hz,20℃17.3mΩ 额定纹波电流10.6Ams/105℃,100Hz
25000UF60V 50*80 等效串联电阻值100Hz,20℃18.1mΩ 额定纹波电流10.8Ams/105℃,100Hz
27000UF60V 35*90 等效串联电阻值100Hz,20℃16.2mΩ 额定纹波电流11.9Ams/105℃,100Hz
28000UF60V 35*140 等效串联电阻值100Hz,20℃15.8mΩ 额定纹波电流12.5Ams/105℃,100Hz
29000UF60V 65*65 等效串联电阻值100Hz,20℃26.8mΩ 额定纹波电流9.9Ams/105℃,100Hz
32000UF60V 50*90 等效串联电阻值100Hz,20℃15.1mΩ 额定纹波电流10.2Ams/105℃,100Hz
33000UF60V 35*105 等效串联电阻值100Hz,20℃14.2mΩ 额定纹波电流11.3Ams/105℃,100Hz
39000UF60V 35*115 等效串联电阻值100Hz,20℃12.8mΩ 额定纹波电流12.7Ams/105℃,100Hz
39000UF60V 50*105 等效串联电阻值100Hz,20℃13.3mΩ 额定纹波电流13.1Ams/105℃,100Hz
41000UF60V 65*80 等效串联电阻值100Hz,20℃19.3mΩ 额定纹波电流11.4Ams/105℃,100Hz
45000UF60V 35*130 等效串联电阻值100Hz,20℃11.8mΩ 额定纹波电流15.1Ams/105℃,100Hz
46000UF60V 50*115 等效串联电阻值100Hz,20℃12.1mΩ 额定纹波电流15.5Ams/105℃,100Hz
51000UF60V 35*140 等效串联电阻值100Hz,20℃11.2mΩ 额定纹波电流16.6Ams/105℃,100Hz
52000UF60V 65*90 等效串联电阻值100Hz,20℃17.1mΩ 额定纹波电流11.8Ams/105℃,100Hz
53000UF60V 50*130 等效串联电阻值100Hz,20℃11.3mΩ 额定纹波电流15.5Ams/105℃,100Hz
60000UF60V 50*140 等效串联电阻值100Hz,20℃10.7mΩ 额定纹波电流16.7Ams/105℃,100Hz
61000UF60V 76*80 等效串联电阻值100Hz,20℃14.9mΩ 额定纹波电流14.8Ams/105℃,100Hz
64000UF60V 65*105 等效串联电阻值100Hz,20℃13.7mΩ 额定纹波电流16.0Ams/105℃,100Hz
76000UF60V 65*115 等效串联电阻值100Hz,20℃11.8mΩ 额定纹波电流17.8Ams/105℃,100Hz
78000UF60V 76*90 等效串联电阻值100Hz,20℃12.1mΩ 额定纹波电流18.1Ams/105℃,100Hz
87000UF60V 65*130 等效串联电阻值100Hz,20℃11.0mΩ 额定纹波电流17.6Ams/105℃,100Hz
95000UF60V 76*105 等效串联电阻值100Hz,20℃10.8mΩ 额定纹波电流18.6Ams/105℃,100Hz
99000UF60V 65*140 等效串联电阻值100Hz,20℃10.5mΩ 额定纹波电流19.7Ams/105℃,100Hz
110000uf60v 76*115 等效串联电阻值100Hz,20℃9.9mΩ 额定纹波电流21.0Ams/105℃,100Hz
130000UF60V 76*130 等效串联电阻值100Hz,20℃8.8mΩ 额定纹波电流23.0Ams/105℃,100Hz
130000UF60V 89*105 等效串联电阻值100Hz,20℃9.9mΩ 额定纹波电流22.3Ams/105℃,100Hz
150000UF60V 76*140 等效串联电阻值100Hz,20℃7.9mΩ 额定纹波电流25.3Ams/105℃,100Hz
150000UF60V 89*115 等效串联电阻值100Hz,20℃9.0mΩ 额定纹波电流26.8Ams/105℃,100Hz
160000UF60V 76*146 等效串联电阻值100Hz,20℃7.5mΩ 额定纹波电流5.5Ams/105℃,100Hz
180000UF60V 89*130 等效串联电阻值100Hz,20℃7.9mΩ 额定纹波电流25.7Ams/105℃,100Hz
200000UF60V 89*140 等效串联电阻值100Hz,20℃7.2mΩ 额定纹波电流28.0Ams/105℃,100Hz
210000UF60V 89*146 等效串联电阻值100Hz,20℃6.8mΩ 额定纹波电流29.4Ams/105℃,100Hz
230000UF60V 76*192 等效串联电阻值100Hz,20℃6.5mΩ 额定纹波电流31.2Ams/105℃,100Hz
250000UF60V 76*218 等效串联电阻值100Hz,20℃5.7mΩ 额定纹波电流32.6Ams/105℃,100Hz
300000UF60V 89*192 等效串联电阻值100Hz,20℃5.8mΩ 额定纹波电流35.3Ams/105℃,100Hz
350000UF60V 89*218 等效串联电阻值100Hz,20℃5.2mΩ 额定纹波电流38.5Ams/105℃,100Hz
