特点：
·主机与料桶(可选配电眼开光，控制填料动作)采用分离式设计，安全简便。
·MICRO TRIP微电脑控制运转。
·独立滤清器装置，方便清除积尘。
·静音装置，减低运转噪音。
·不锈钢储料桶，轻便耐用好清料。
·控制箱独立设计，维修容易。
·缺料自动蜂鸣警报告知。
·马达过载自动保护装置。

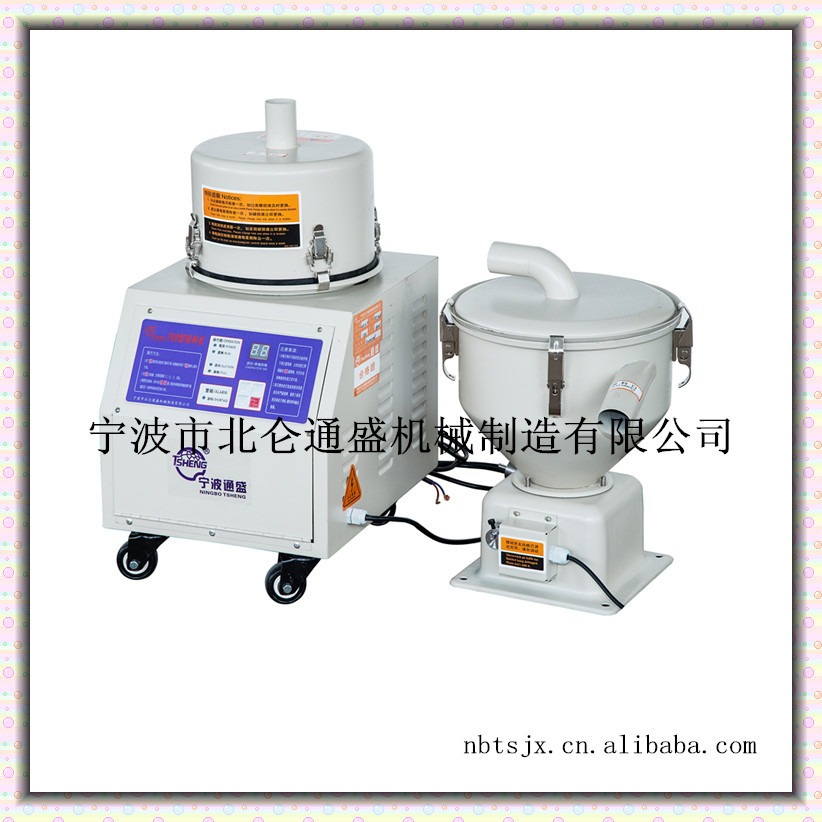

·XTL-900GN-2单一主机控制两个储料斗，不占空间便与管理操作。
主要配置
名称 | 产地 | | 名称 | 产地 |
电脑板 | 广东 | 电器 | 施耐德 |
铁件 | 自制 | 马达 | 舟山 |
过滤网 | 慈溪 | 脚轮 | 宁波 |
微动开关 | 欧姆龙 | 表面处理 | 喷塑 |
主要参数：
型号 | XTL-800 | XTL-800GN | XTL-5HP | XTL-900GN-2 | XTL-800GN2-P |
马达 | 型式 | 感应式 | 感应式 | 感应式 | 感应式 | 感应式 |
规格 | 1100w3Φ | 2200w3Φ | 3500w3Φ | 2200w3Φ | 1100w3Φ |
输送能力 | 450kg/hr | 650kg/hr | 700kg/hr | 450kg/hr+450kg/hr | 650kg/hr |
静风尘 | 1450mmAq | 2200mmAq | 2200mmAq | 2000mmAq | 1450mmAq |
滤清器 | Φ188x115H | Φ188x115H | Φ188x260H | Φ188x115H | Φ188x115H |
储料桶容器 | 6.5L | 6.5L | 25L | 6.5L | 12L | 6.5L |
输料管内径 | Φ38mm | Φ38mm | Φ51mm | Φ38mm | Φ38mm |
外型尺寸 | 主体 | 680x370x500 | 700x370x500 | 700x500x850 | 850x480x740 | 680x370x500 |
储料筒 | 430x440x295 | 430x440x295 | 430x440x295 | 430x440x500 | 430x440x700 |
重量 | 主体 | 35kg | 45kg | 60kg | 50kg | 35kg |
储料筒 | 6kg | 6kg | 8kg | 6kg+6kg | 12kg |
Features：
1、The main engine and the material hopper are designed separately,
and thus it is safe, easy and convenient to be operated.
2、The whole operation is controlled by Micro Trip computer.
3、·Equipped with an independent filter, which is very convenient tocleanup dust.
4、The equipped muffler reduces the noise in operation.
5、Stainless steel material hopper is light in weight, durable
and very convenient for cleaning the device.
6、The control box, being designed separately, iseasy tobe well maintained.
7、Auto-buzzer will give alarm while lacking material.
8、Auto-protective device protects motor against overloading.
9、XTL-900GN-2 controlling two suction hopper by one single controller
not only can avoid taking space but also manage convenient.
Specification：
Model | XTL-800 | XTL-800GN | XTL-5HP | XTL-900GN-2 | XTL-800GN2-P |
Motor | type | induction | induction | induction | induction | induction |
specification | 1100w3Φ | 2200w3Φ | 3500w3Φ | 2200w3Φ | 1100w3Φ |
Conveying capacity | 450kg/hr | 650kg/hr | 700kg/hr | 450kg/hr+450kg/hr | 650kg/hr |
Static wind pressure | 1450mmAq | 2200mmAq | 2200mmAq | 2000mmAq | 1450mmAq |
filter | Φ188x115H | Φ188x115H | Φ188x260H | Φ188x115H | Φ188x115H |
Volume of material hopper | 6.5L | 6.5L | 25L | 6.5L | 12L | 6.5L |
Inside diameter of conveying pipe | Φ38mm | Φ38mm | Φ51mm | Φ38mm | Φ38mm |
External size | Main body(mm) | 680x370x500 | 700x370x500 | 700x500x850 | 850x480x740 | 680x370x500 |
Material hopper (mm) | 430x440x29 | 430x440x295 | 430x440x295 | 430x440x500 | 430x440x700 |
weight | Main body (kg) | 35kg | 45kg | 60kg | 50kg | 35kg |
Material hopper (kg) | 6kg | 6kg | 8kg | 6kg+6kg | 12kg |
