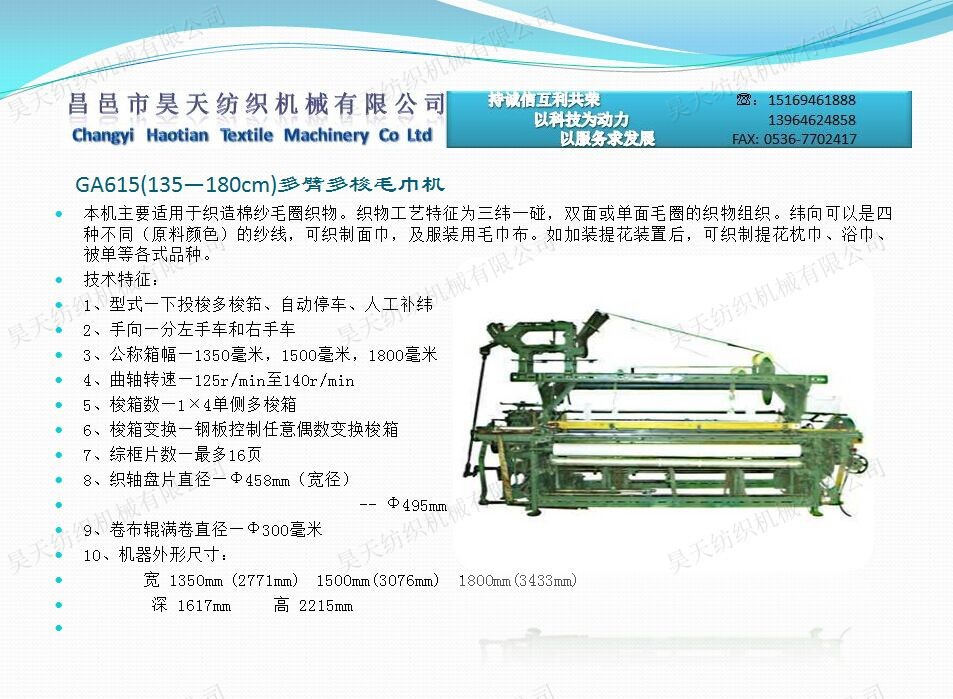

GA615 (135 - 180cm) multi - arm multi shuttle towel loom
The machine is mainly suitable for weaving cotton terry fabrics. The characteristics of fabric is three, touch, double or single Terry fabric. Weft can be four different (raw material color) yarn can be woven towel, towel cloth and clothing. Such as the installation of jacquard device, can be woven jacquard towel, bath towel, sheets and other kinds of varieties.
Technical characteristics:
1, type underpick shuttle reed, automatic parking, artificial recharge of weft
2, hand - - - - - - - - - - - - - - - - - - - - -
3, nominal box width - 1350 mm, 1500 mm, 1800 mm
4, the crankshaft speed - 125r/min to 140r/min
5, shuttle box number - 1 * 4 single side multi shuttle box
6, shuttle box transformation - steel plate control of any number of shuttle box
7, the number of integrated frame sheet - up to 16 pages
8, weaving shaft disk diameter - 458mm diameter (width) 495mm diameter (bottom diameter)
9, the cloth roll roll diameter - 300 mm diameter full
10, the size of the machine: 1350mm (2771mm) 1500mm () 1800mm (3076mm) (3433mm)
Deep 1617mm high 2215mm
