全自动700型卷帘门机技术参数:
Automatic type 700 rolling door machine technical parameters:
长×宽×高 ：11000mm×1300mm×950mm
Length x width x height of ：11000 mm * 1300 mm * 950 mm
成型轴：直径70mm 45#调质
Molding axis: 70 mm diameter 45 # quenched and tempered
成型轮：材料45#锻打 镀硬铬
Molding chakra: 45 # forged material hard chromium plating
传动方式：链轮、链条
Mode of transmission: sprocket, chain
电机：4KW
Motor: 4 kw
成型排数：24排
Molding line number: 24
全自动电脑定长切断系统：
Fully automatic computer fixed-length cutting system:
泵站电机：3KW四级
Pump motor: 3 kw level 4
剪切模具：Gr12
Shearing mould: Gr12
成型速度：8-10m/min
Molding speed: 8-10 m/min
压制厚度：0.2-0.7mm
Suppression of thickness: 0.2 0.7 mm
压制宽度：1000mm
Suppress width: 1000 mm

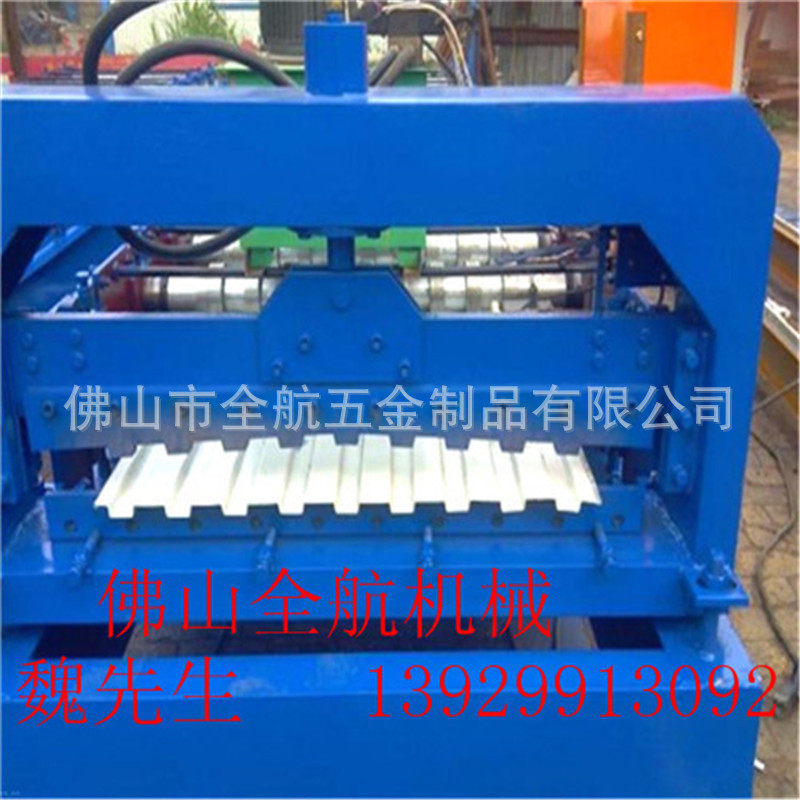

700型全自动卷帘门机主要由进料导入平台、成型主机、成型剪切装置、液压站、电脑控制系统等几部分组成并配合锁边机使用。
Type 700 automatic shutter machine is mainly composed of feed import platform, forming host, forming cutting device, hydraulic station, computer control system and so on several parts and used with locked stitcher.
700型卷帘门机选装配置有普通放料机、液压放料机。
700 type shutter pause loaded configuration has a common feeding machine, hydraulic feeding machine.
1、采用高水平自动控制软件，实现生产信息化管理。
1, using high level automatic control software, the realization of information management system of production.
2、整个机组自动化控制系统采用高集成的网络，使自动化系统性能更优越。
2, the automation control system USES high integration of network, the automation system performance is superior.
3、还具有操作、维护、保养以及机械的调试、模具更换容易等优点。
3, also has the operation, maintenance, maintenance and debugging machinery, mold the advantages of easy replacement.
700型卷帘门机广泛应用于各种工业厂房、仓库及超市、商场卷闸门的制作。
Type 700 rolling door machine is widely used in various industrial factory building, warehouse supermarkets, shopping malls and gate.
感谢您耐心看完我们的产品介绍，如有疑问，可随时联系我们，我们的销售人员会耐心解答您的问题，我们的技术人员会为您提供多种机器生产方案；期待您的来电！
Thank you for your patience to read our product introduction, if in doubt, can feel free to contact us, our sales staff will patiently answer your question, our technical staff will provide you with a variety of machine production plan;Look forward to your call!
