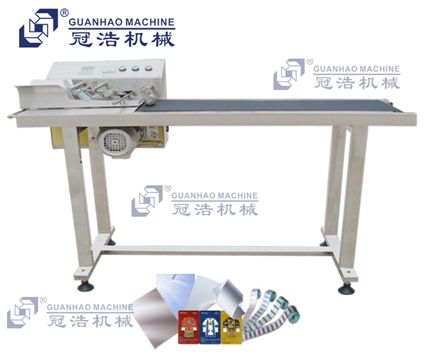

挡板式分页机
设备简介：
用于将成叠的纸类、纸盒或包装袋自动分开，分成单个传送到输送带上，便于喷码机或激光机进行喷印、喷刻生产日期、批号、防伪标记、图案等。从而减少人工分页的繁琐，充分发挥喷码机、激光机的高速喷印优点，提高喷印工作效率。本机机身全不锈钢制造，采用进口高精度变频器配合高等国产电机，具有很高的稳定性，并配备智能计数自动停机功能，方便生产管理。广泛应用于药品、化妆品、食品等各行业的喷码和喷印之用。
技术参数：
被分离尺寸：长：65-200mm宽65-200mm厚0.4mm以上
额定电压：220V/50Hz
整机功率: 250W
分页速度：0-60米/分钟可调
外形尺寸：2100×650×1350(mm)
专业设计/生产灌装机,贴标机,旋盖机,封口机,套标机,包装机,分页机,输送机,喷码机,打码机,收缩机等包装设备
可根据客户要求订做。
Introduction:
The GH-FB320 Reverse wheel separating machine is used to separate the piles of paper, cartons or packaging bags into single piece automatically and send them to the conveyor belt, so that the jet printing machine or laser machine can perform code printing, printing and cutting of date of manufacture, batch number, security marks and patterns etc. It eliminates the inconvenience of manual separating, and makes full use of the advantage of high-speed jet printing, thus improving the work efficiency of jet printing. The machine body is made of stainless steel. It uses imported high-precision frequency converter and domestic motor, boasting high stability. The intelligent counting and automatic stop function facilitates production management. The machine is widely used for code printing and jet printing in pharmaceutical, cosmetics and food industries.
Technical parameter:
product size | length 65-200mm, width 65-200mm , thickness more than 0.4mm |
rated voltage | 220V/50Hz |
Power | 250W |
Speed | 0-60 metere/min adjustable |
Overall size | 2100x650x1350mm |
| |
(It can be customized according to customers’needs.)
