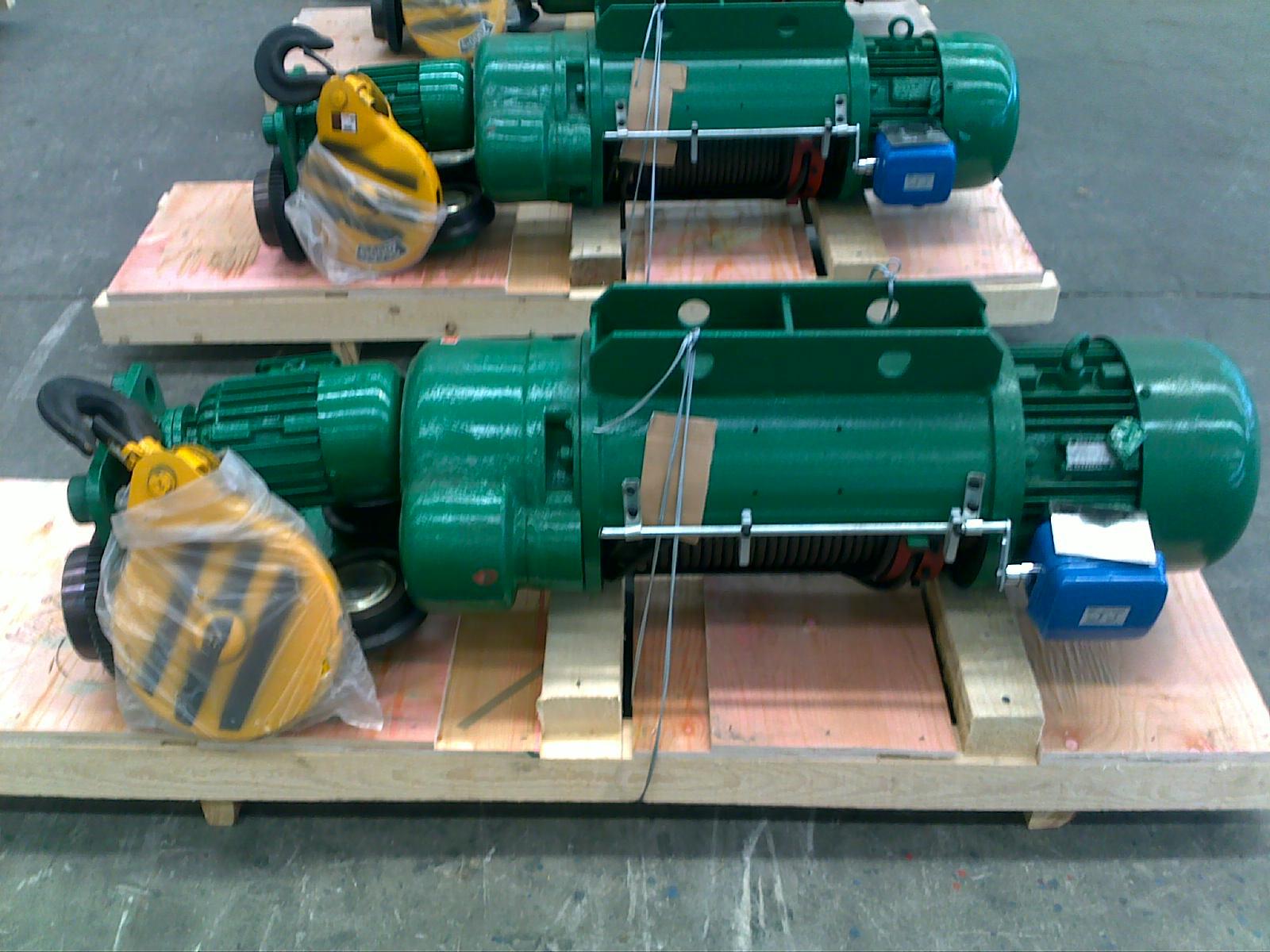

MDItype electric hoists have fast and slow lifting speeds which make it lift steadily and accurately.
MDItype wire-rope electric hoists can be widely used to hoist heavy objects, or installed on the straight or curve I-steel beam of Single-girder Cranes. They can also be used together with Electric Hoist Double-girder, gantry crane and slewing cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.
技术参数表
Technical Parameter Table
| 型 号 Type | CD1、MD1 |
| 起升量Lifting capacity | t | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
| 起升高度Lifting height | m | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 |
| 起升速度Lifting speed | m/min | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 7/0.7 |
| 运行速度Traveling speed | m/min | 20, 30 |
| 钢丝绳型号 Wire type | 6x19-3.6 | 6x37-
4.8-180 | 6x37-
7.4-180 | 6x37-
11-155 | 6x37-13-170 | 6x37-
15-200 | 6x37-
15-200 |
工字梁轨道型号
I-steel beam track type(GB706-88) | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
| 环形轨道最小半径Minimum radius of annular track | m | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 |
| 起升电机 Lifting motor | 型 号Type | ZD112-4 | ZD112-4
ZDS10.2/
0.8 | ZD122-4
ZDS10.2/
1.5 | ZD131-4
ZDS10.4/
3 | ZD132-4
ZDS10.4/
4.5 | ZD141-4
ZDS10.8/
7.5 | ZD151-4
ZDS11.5/
13 |
| 容 量 volume | Kw | 0.4 | 0.8 0.2/0.8 | 1.5 0.2/1.5 | 3 0.4/3 | 4.5 0.4/4.5 | 7.5 0.8/7.5 | 13 1.5/13 |
| 转速 Rotation speed | r/min | 1380 | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 |
| | 3P 380V 50HZ |
| 运行电机 Travel motor | 型 号Type | w5024 | ZDY!11-4 | ZDY!11-4 | ZDY!12-4 | ZDY!12-4 | ZDY!21-4 | ZDY!21-4 |
| 容 量 volume | Kw | 0.06 | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8×2 |
| 转速 Rotation speed | r/min | 1400 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| | | 3P 380V 50HZ |
工作级别及机构级别
work class and mechanism class | 中级 Middle class |
