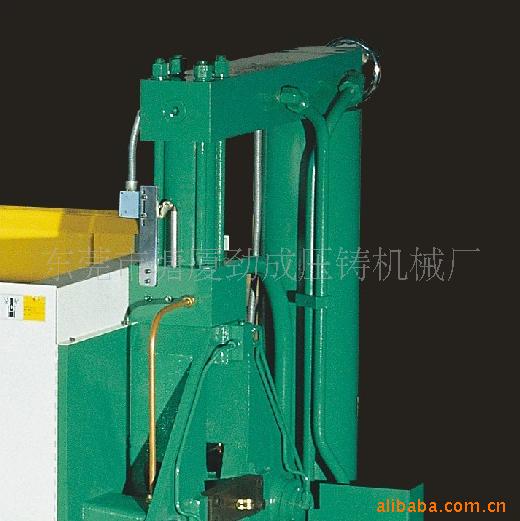

ＫＳＣ３８Ｔ 热室压铸机技术装备 Hot chanber Technology
1、活塞式蓄能器，配以栋梁式压射系统。压力损耗小，反应快，压射速度达5M/S以上，能稳定生产薄壁压铸件；
2、射料油缸，储能器经热处理及氮气处理永不磨损；
3、组合式压射头设计、配用三组德国钢铃，能在高温、高速及高压下可靠工作。
1、Piston type accumulator with a horizontal connection unit ensures lower pressure wastage and fast reaction. The injection speed can reach more than 5M/S and it can produce thin wall die castings stably.
2、Injection cylinder and accumulator are hardened by heat-treatment.
3、Combined injection plunger head design together with three groups of German piston rings can make it perform stably umder high temperature, high pressure and high speed.

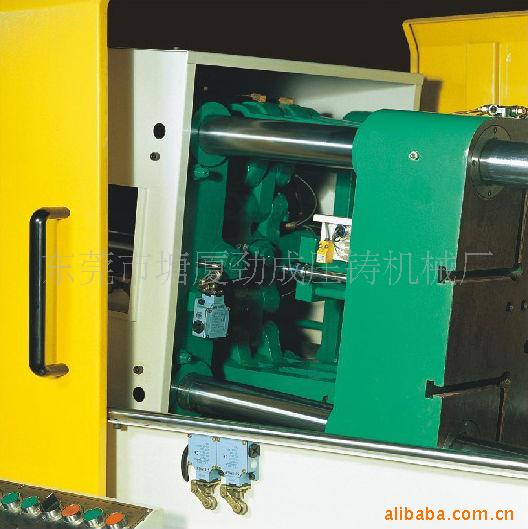

1、球墨铸铁模板及机铰经电脑机床加工，组成精密锁模系统；
2、双曲肘机铰，运动特性符合机器开合模具要求，高速稳定；
3、特大四柱内间距及开模行程，可容纳大模具及深腔模具；
4、高拉力镀铭导柱；
5、低压护模程序，保证模具安全。
1、S.G.lron mould platens and toggles after cutting by computer controlled machine, form precious clamping unit.
2、Moving characteristic of double tog-gle is in accordance with mould open and close requirement, which is high speed and stable.
3、Extral large space inside four tie-bars and mould open stroke can contain big moulds and deep cavity.
4、Chrome tie-bars with high tensile force.
5、Protection mould process with low pressure ensures the safety of moulds.

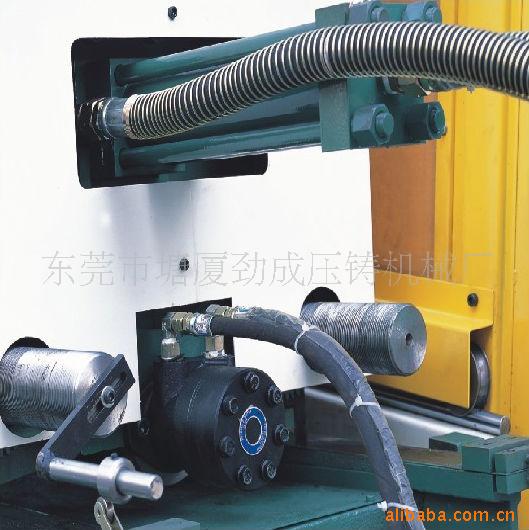

1、液压控制齿轮调模装置，操作简单，稳定保持头板及中板之平行度；
2、开模设有机械及油压双重缓冲；
3、全机各油缸、密封件都采用西德及日本高科技密封原件，耐磨、耐高温、耐高压及高速、寿命长。
1、Mould adjustment system is drive by hydraulic controlled gear transm-ission, which is easy for operation and can keep parallelity between head plate and middle platen.
2、Mechanical and electrical and electrical die opening are acceptable.
3、All cylinders use German oil seals to enhance the ability to withstand scrape, high temperature and pressure.

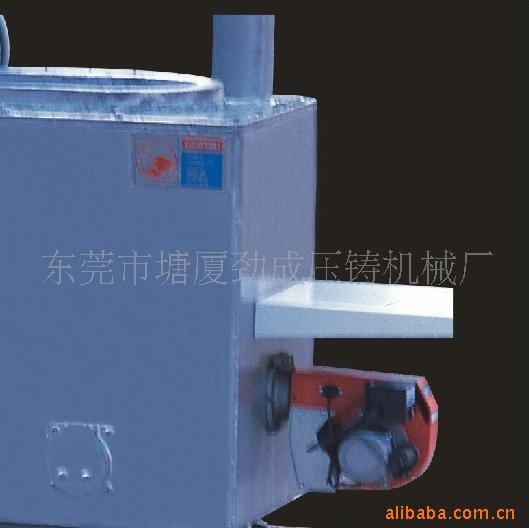

1、电热控制射咀、鹅劲温度；
2、射咀及鹅头采用特有的电加热器加热，避免塞咀而产生次品；
3、射咀、鹅头、压射头及料壶司筒采用德国优质热作钢制造，使用用寿命长；
4、采用瑞典名厂喷火器，操作容易，火力稳定，可靠耐用。
1、Electrically controlled temperature of nozzle and goose neck.
2、Nozzle and goes neck are heated by electric heater to avoid jamming of nozzle resulting defective products.
3、Nozzle, gooes neck, injection plunger head and melting pot sleeve are made from hot work steel from Germany, so their life spans are long.
4、Oil injection burner from famous Swedish maker is adopted. It\'s easy to operate and it is reliable and durable with stable firepower.

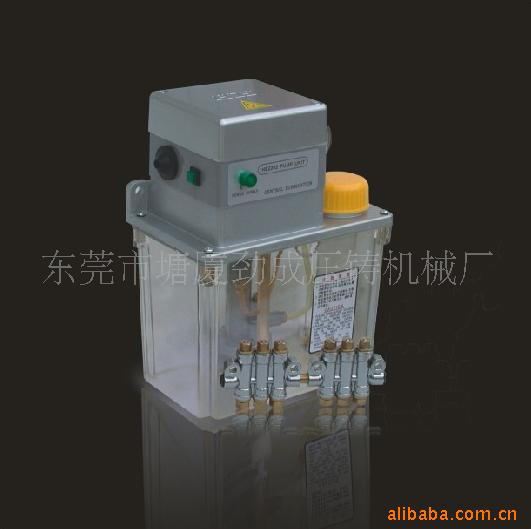

标准配备自动润滑装置
1、定量卸压式集中稀油润滑装置，由主机PLC控制，能实现自动供送油济，监控润滑系统失压及低油位发讯；
2、润滑油废油被集中收集到一个地方排出。
1、Its quantificational pressure releasing centralized oil thinning lubricating deveice is controlled by PLC of main machine, It can realize oil supply and monitor lubricating system and send signal when pressure is lost and oil leve is low.
2、It is designed to collect the waste lubricating oil in one spot for discharge.

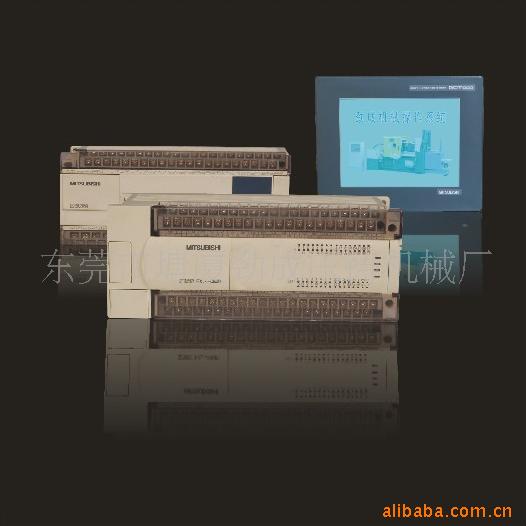

1、日本名厂电脑程序控制器，操作简单，工作稳定。控制和监视整机工作状况，能迅速排除故障；
2、触屏式人机界面，无须按键，轻松实现各种参数的设定和调校；
3、采用近接开关及行程开关控制，信号准确可靠；
4、机器强弱电分隔布置，增强安全性和可靠性。
1、Programmable logic controller is from famous Japanese maker with easy operation and stable performance. It controls and monitors working status of the machine and can clear trouble immediately.
2、Screen touch human-computer interface. No need to press buttons for srtting and adjustment of parameters.
3、Proximity switch and limit switch are adopted to obtain accurate and reliable signals.
4、Different compartments for strong and light current are arranged to enhance safety and reliability.
KS38T热室压铸机技术参数表
项目 Projects | 单位 | KS18T |
锁模力 Clamping force | KN | 380 |
锁模行程 Clamping Stroke | mm | 200 |
| 顶出力 Ejector power | KN | 30 |
| 顶出行程 Ejector Stroke | mm | 50 |
| 模具厚度（薄—厚）Mould thickness(the smaller-the largest) | mm | 100-320 |
| 模板尺寸 Moulding board size | mm | 450X480 |
| 哥林柱内距 Inner space between tiebbar | mm | 290X290 |
| 哥林柱直径 Tiebar diameter | mm | 50 |
| 射料位置 Injection place | mm | 0-40 |
| 射料力 Injection force | KN | 45 |
| 射料行程 Injection stroke | mm | 125 |
| 离咀行程 Traverse stroke | mm | 150 |
| 锤头直径 Hammer diameter | mm | 35/40/45 |
| 射料重量 Injection weight | kg(zn) | 0.65/0.82/1.1 |
| 坩埚容积 Crucible capability | L(kg/zn) | 50(325) |
| 电机功率 Powe of motor | KW | 7.5 |
| 系统工作压力 System working pressure | Mpa | 10 |
| 燃油能耗量 Eeregy consumption of Fuel | kg/h | 4 |
| 电炉能耗量 Eeregy consumption of Electric cooker | KW | 20 |
| 油箱容量 Oil box capability | L | 200 |
| 射咀加热功率 Injection nozzle heating power | KW | 2 |
| 机械重量 Machine weight | kg | 2800 |
| 机器外形尺寸(长X宽X高)Appearance and size of machine | mm | 3100X1120X1600 |
机械的简单介绍:
1、油泵油阀:采用原装进口液压元件〈油研、力士乐、威格士等品牌〉。
2、电脑（PLC）电器元件：采用日本三菱电脑，具有故障显示报警功能.电器元件采用日本或欧美产品。
3、电机:采用东莞环球电机(全国免检产品)。
4、哥林柱：采用优质高抗拉力材料，内部采用调质去应力处理，外部采用表面渗碳精磨镀硬铬工艺，比其它同类型产品寿命更长。
5、油管:采用台湾知名产品,内含四层钢丝,更加经久耐用。
6、模板：采用国内目前可延伸系数高达700的高韧性球铁。具有耐用,不变形等特点。
7、调模机构：油压式齿轮调模，操作简单、稳定性高。
8、射料机构：加强型两速射料控制；经改进后的射料系统，其稳定性更强.适合一切高品质铸件的生产,而且热作件通用性广，大大节省客户使用成本。
9、安全保护：机器自动润滑时,欠压缺油自动停机。另具有锁模低压保护、手动锁模双手操作、锁模机后无人操作及射料动作六级防护等保护程序，有效保护机器、模具及操作工的安全。
售后服务：
全天候提供压铸机售后服务.并承诺在接到客户电话后安排服务人员按时到达。
保质期：
1、整机保用壹年，大件（模板，哥林柱）保用两年。
2、保质期过后，所有零配件原则上只收取成本费用。
