要技术参数
(Main Technical Data:)
机型:CFD-3
包装速度:3600-3000/per hour
封膜宽度:330mm
充填容量:100ml-300ml
使用电源:380V50HZ
电机功率:0.75kw
加热功率:6kw
使用气压:0.5Mpa-0.7Mpa
最大耗气量:0.7m3/min
外形尺寸:2900X700X1700(LXWXH)
调速方式:无级调速
整机重量:AproX800kg
Model:CFD-3
Capacity:3600-3000/per hour
Film Width:330mm
Filling Volume:100ml-300ml
power requirement:380V50HZ
Motor power:0.75kw
Air pressure:0.5Mpa-0.7Mpa
Maximum Air Consumption:0.7m/min
Machine Dimension:2900X700X1700(LXWXH)
Speed Governors:Stepless Speed Control
Weight:AproX800kg

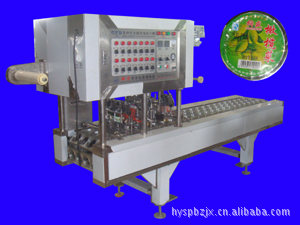

CFD-10系列自动充填封口机
(CFD-10 SERIES AUTOMATIC FILLING&SEALING MACHINE)
1.全新设计,专用于果冻、八宝粥、珍珠奶茶、果奶、酸奶、牛奶、豆奶调料品等充填封口。
2.本机从落杯、送料、充填、封口、光电图案校正、剪切、出料为全自动作业。
3.本机电器及气动元件采用德国、日本、台湾等名优产品。根椐用户需要，可配用PLC控制
系统及加装打印出厂日期装置。
4.本机主要部件为不锈钢材料制作，符合食品卫生标准。
Instruction
1.It is a new designed machine to fill and seal plastic for jelly,
eightingredient gruel,pearl milk tea,yoghurt,milk ,and soybean and
so on.
2.From laying cup,delivering ingredient,filling,sealing,photoe lectric
pattern proofreading,cutting to conveying,this machine Works automatically.
3.The electric system and pneumatic components of this machine are adopted
German,Japanese and Taiwanese famous brand.According to customer\'s requirement,
this machine can be equipped with PLC,device of production date printing
4.The material of this machine\'s main components is stainless Steel,which conform
to food hygiene standard.
